Product Description:
Designed for centralized low-voltage power distribution, Gaobo XM distribution box serves as a fundamental power splitting unit for indoor electrical systems. Built in accordance with GB7251.3, the standard governing low-voltage switchgear and controlgear assemblies, it undergoes strict factory inspection before shipment to guarantee stable operation under continuous working conditions.

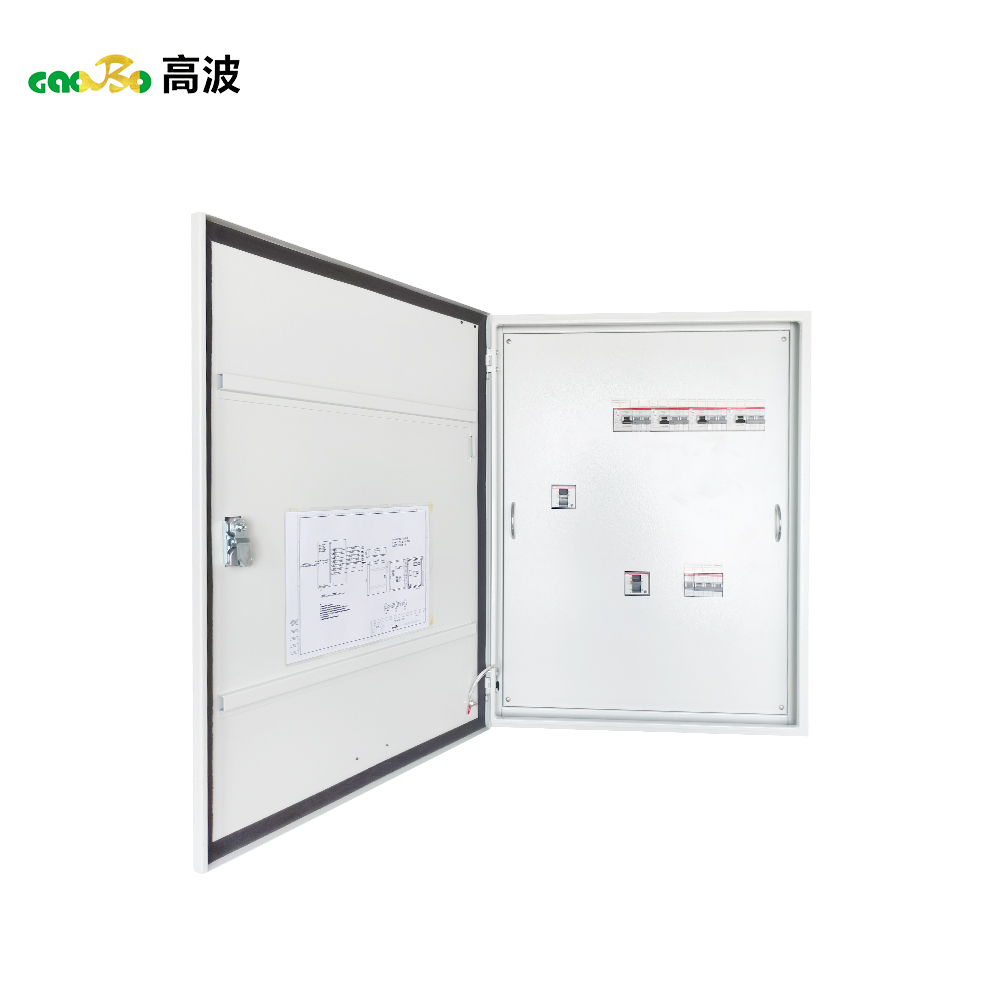

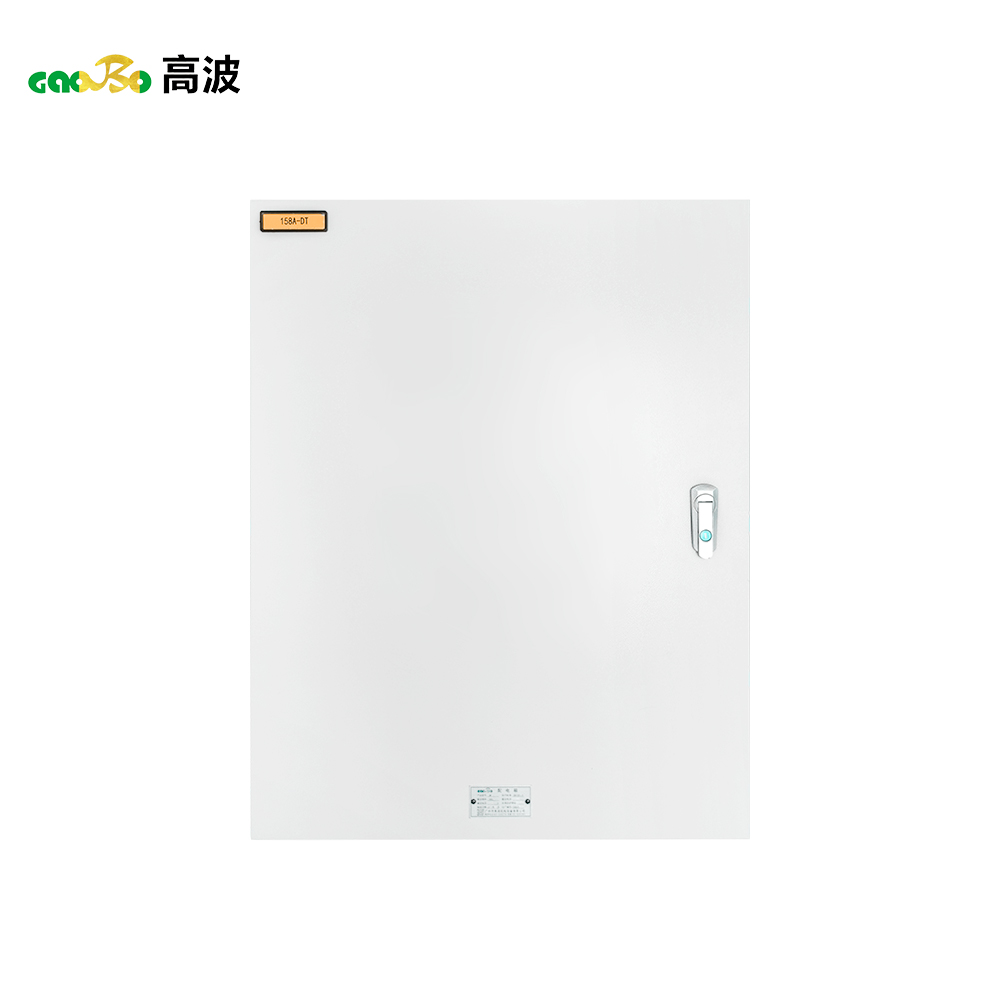

The cabinet shell is fabricated from thick cold-rolled steel plate, treated with electrostatic powder spraying on both inner and outer surfaces. This anti-corrosion coating effectively resists oxidation and minor dust accumulation, extending the service life even in ordinary factory and commercial indoor environments. The hinged lockable cabinet door provides physical safety isolation, preventing accidental human contact with live internal components while simplifying routine visual inspection.

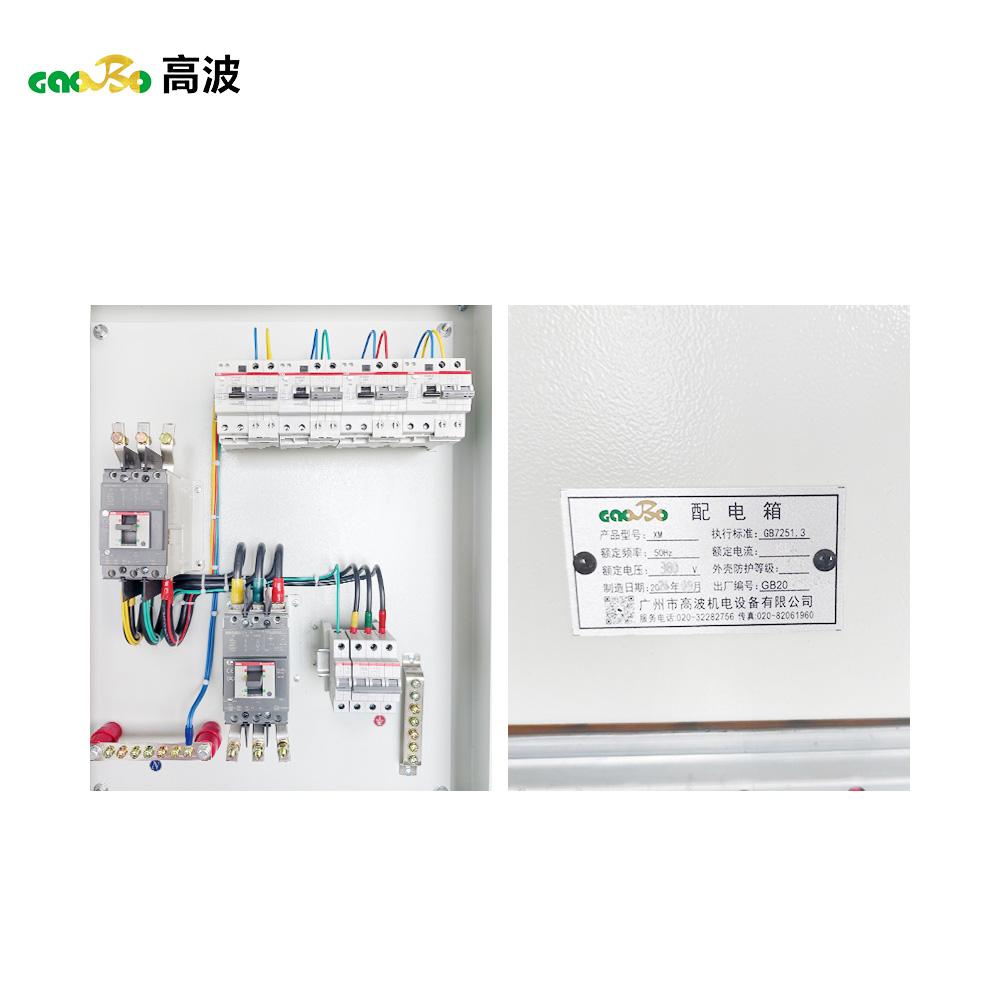

Inside the enclosure, the reserved modular mounting rail offers great flexibility for electrical layout. Engineers can configure different combinations of circuit breakers, protection modules and terminal blocks based on the customer’s branch load requirements. The internal wiring space is reserved reasonably to avoid crowded wiring, reduce heat accumulation and facilitate future maintenance or circuit upgrade.

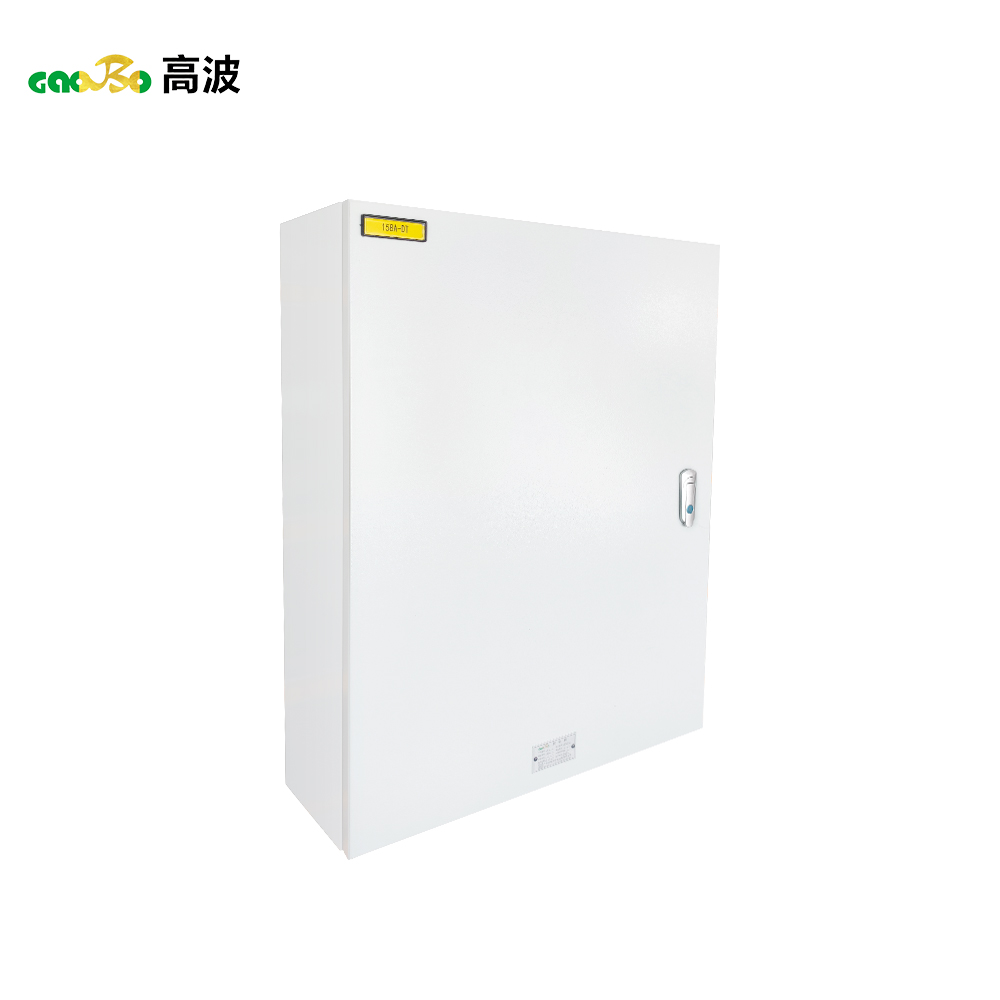

This XM distribution box adopts wall-mounted installation to save floor space. Each finished cabinet carries a unique factory serial number for full product traceability, supporting quality tracking for every delivered unit. As the manufacturer, Gaobo provides one-stop customization, including cabinet dimension adjustment, wiring scheme optimization and pre-assembly of electrical components to meet customized power distribution requirements of various projects.
Specification：
| Item | Technical Parameter |
|---|---|
| Product Model | XM Power Distribution Box |
| Executive Standard | GB7251.3 |
| Rated Operating Voltage | AC 380V |
| Rated Frequency | 50Hz |
| Cabinet Material | Cold-rolled Steel Plate |
| Surface Treatment | Electrostatic Anti-rust Spraying |
| Installation Type | Wall Mounted, Indoor Use Only |
| Traceability | Unique Factory Serial Number |
| Manufacturer | Guangzhou Gaobo Electromechanical Equipment Co., Ltd. |
Application：
- Factory workshop branch power distribution and machine power supply control
- Office buildings, shopping malls and commercial complex lighting & power circuits
- Indoor temporary power supply for construction engineering projects
- Water pumps, fans and automated mechanical equipment power control
- Warehouses, supermarkets and community public power distribution systems
- Municipal supporting indoor power supply and distribution projects
FAQs：
Q1: Which standard applies to this XM power distribution box?
A1: It is manufactured and tested complying with GB7251.3 standard for low-voltage switchgear and controlgear assemblies.
Q2: What power system does this XM enclosure fit for?
A2: It works for indoor three-phase AC380V, 50Hz low voltage power distribution networks.
Q3: Can this XM box be installed outdoors?
A3: No. It is designed for dry indoor conditions. It lacks waterproof structure and cannot be exposed to rain or outdoor humidity.
Q4: Can you pre-install circuit breakers inside the cabinet?
A4: Yes. We can pre-assemble breakers, terminals and arrange wiring layout according to your load and drawing requirements.
Q5: What customization options does Gaobo provide for this distribution box?
A5: We support custom cabinet sizes, internal rail layout, branch circuit quantity and marking labels for your project.
