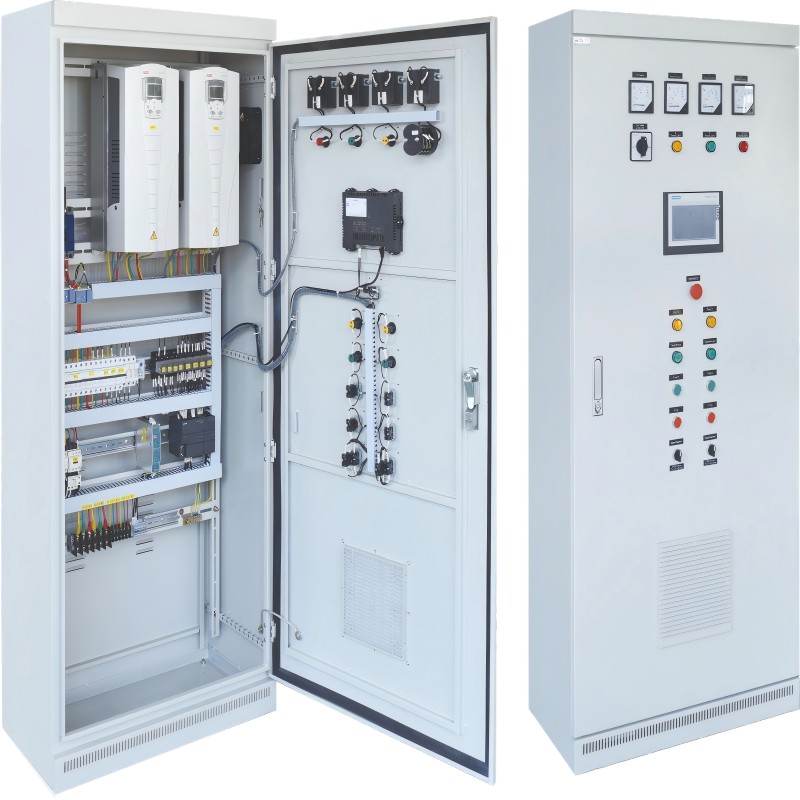

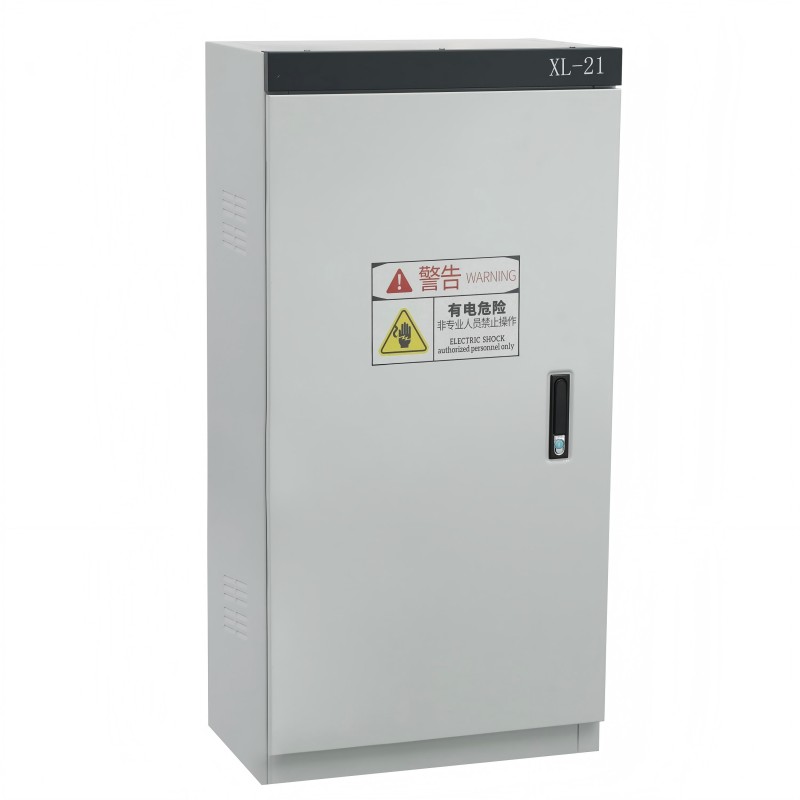

Wall-Mounted Industrial XL-21 Steel Enclosed Electrical Control Panel

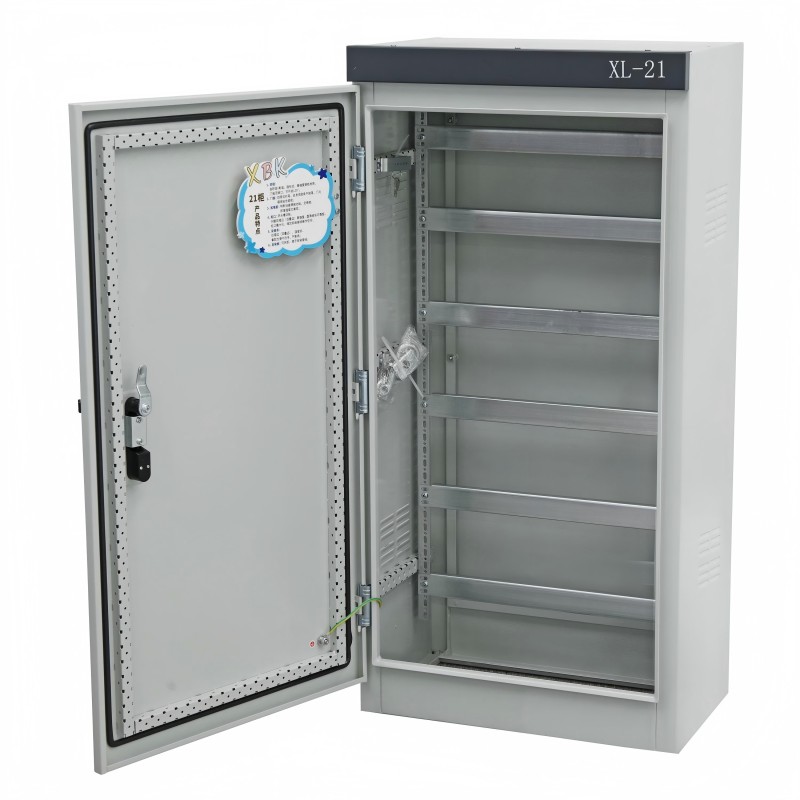

The XL-21 type power cabinet is suitable for power plants and industrial enterprises, used in three-phase four-wire or three-phase five-wire systems with an AC voltage of 500V or less for power distribution. The XL-21 type low-voltage power cabinet is an indoor device installed against the wall, with maintenance performed in front of the screen. The enclosure is made by bending steel plates, and the switch operating handle is located on the upper right column of the box, which can be used to switch the power supply. Depending on user needs, different types and current ratings of circuit breakers can be selected to meet the requirements of different users.
Technical Parameters：
| Parameter | Details |
| Rated working voltage(Ue) | 380V |
| Rated insulation voltage (Ui) | 660V |
| Rated operating frequency | 50Hz |
| Rated breaking current(Icw) | 30kA |
| Maximum operating current（In） | 630A |
| Enclosure protection class |
Ip30 |
Product Details：
The XL-21 type power cabinet is suitable for light textile, metallurgy, chemical industry, mining, machinery and other factory enterprises. It is used as a low-voltage power distribution system with AC 50Hz, rated voltage 380V or 660V, and rated current up to 630A for three-phase three-wire, four-wire or five-wire systems, serving as power and lighting distribution. It can also be used for partial control in low-voltage control systems.
If you're seeking a top - notch power distribution solution, don't hesitate to reach out to us. We're here to assist!
Product Features：
- The main electrical performance complies with IEC60439-1:1999 and GB7251.1-2013
- The auxiliary circuit enables local-remote control switching, and the contactor supports DC holding
- The main power switch offers instantaneous thermal-magnetic tripping protection (disableable for downstream coordination to prevent over-tripping) and supports self, manual, and automatic switching
- The main power switch includes instantaneous and thermal-magnetic tripping protection, with optional leakage protection available
- The motor control circuit includes instantaneous short-circuit, overload, undervoltage release, and phase-failure protection
- The receiving circuit is equipped with ammeters and voltmeters
