Product Description:

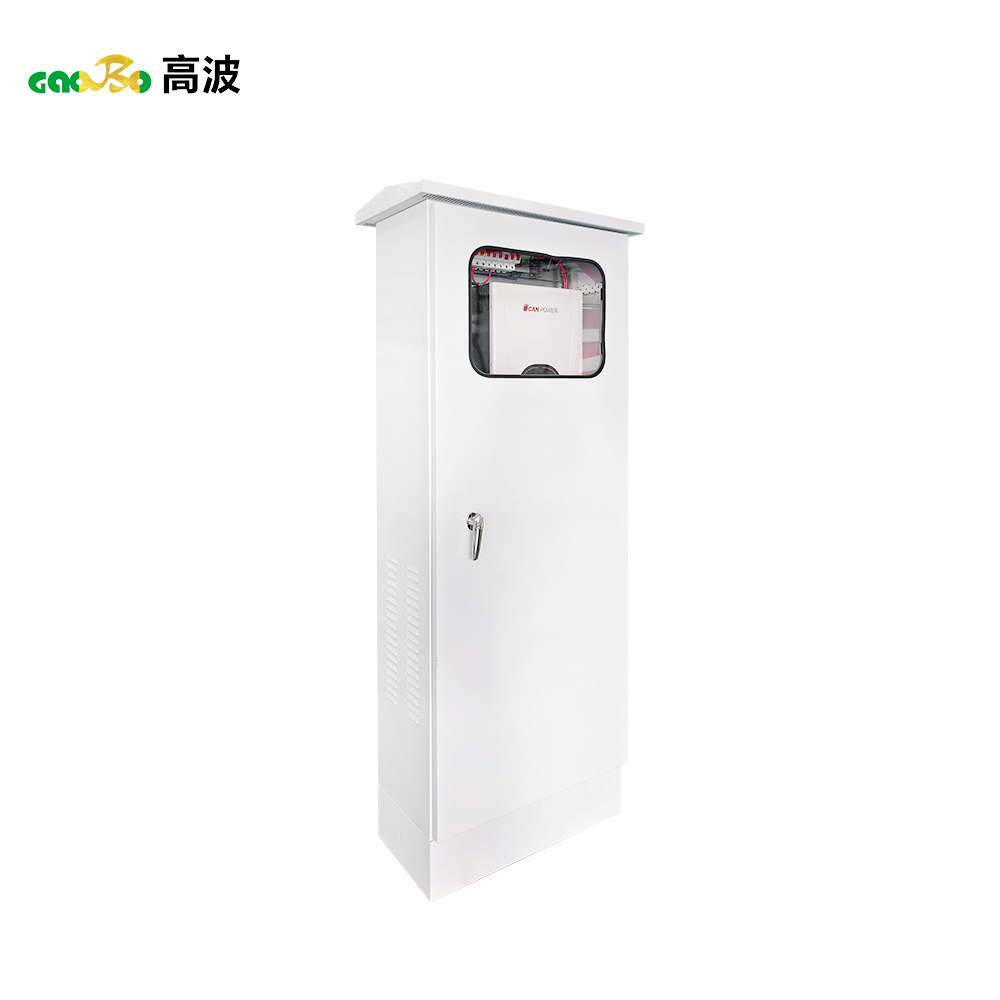

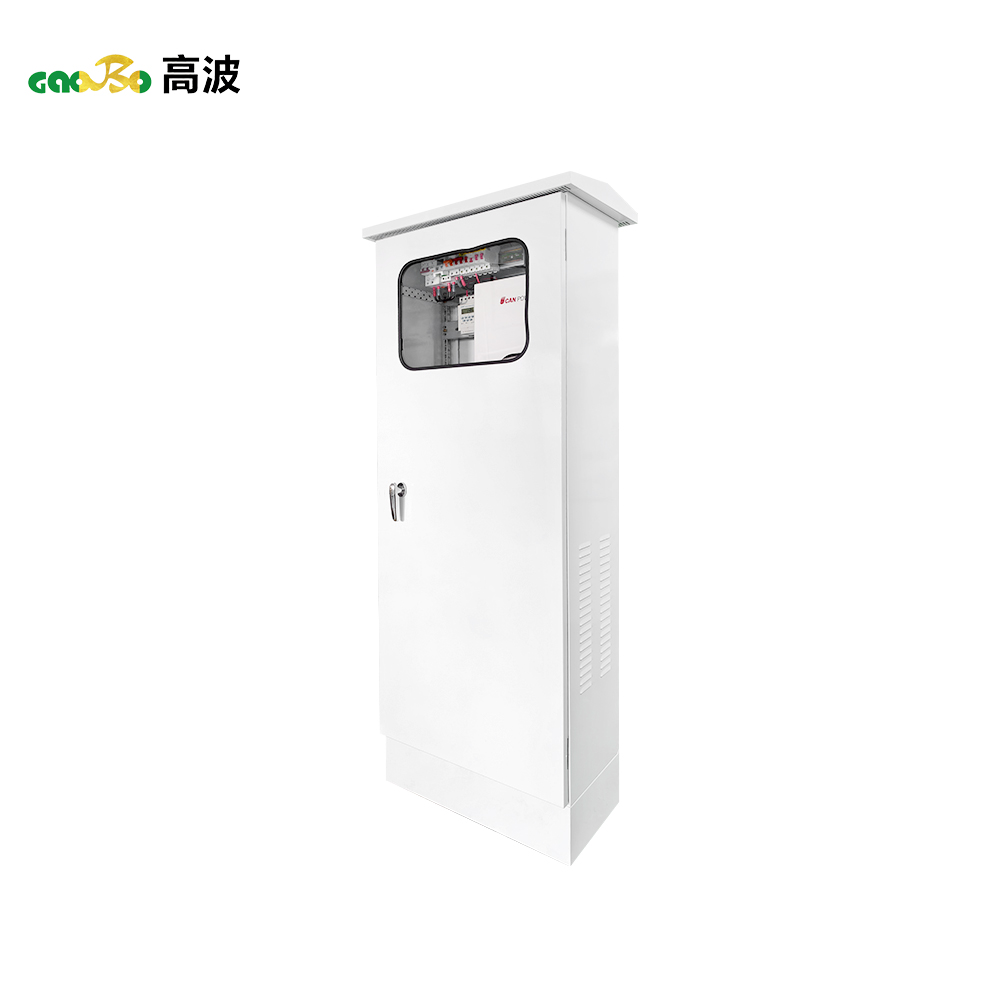

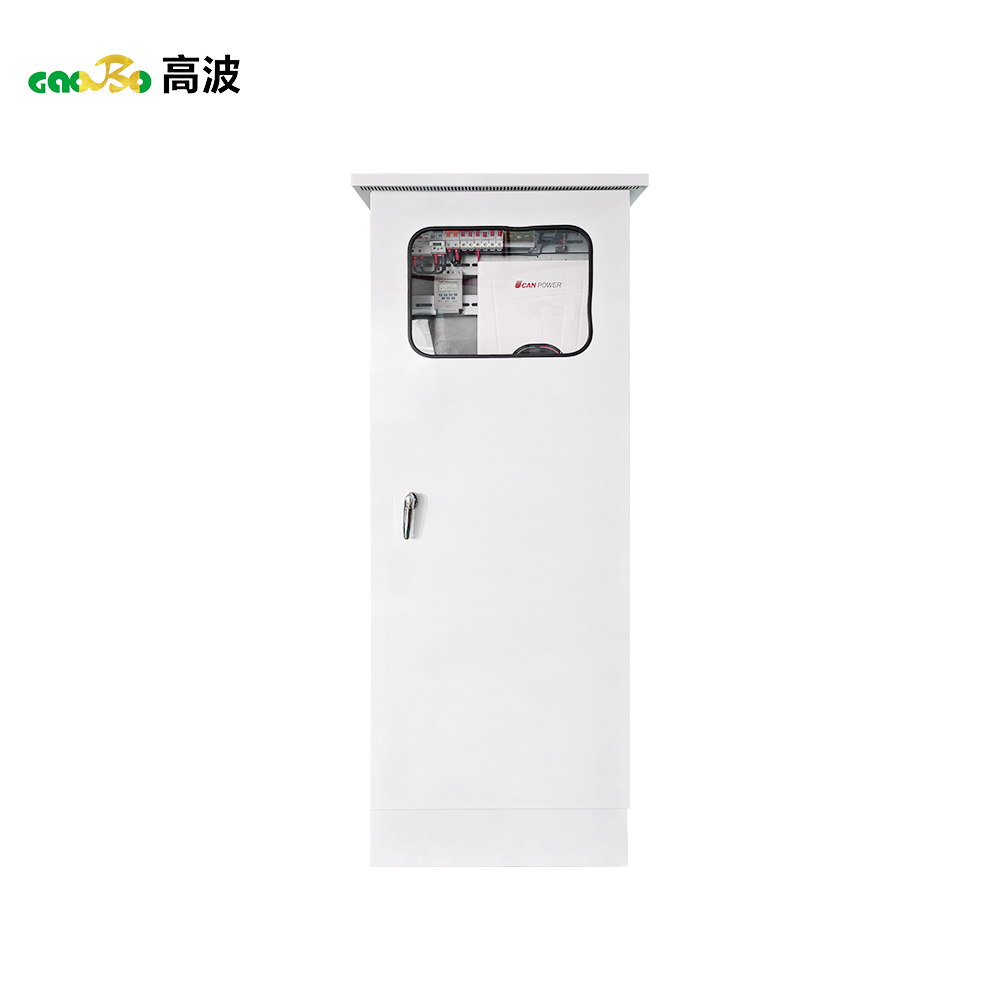

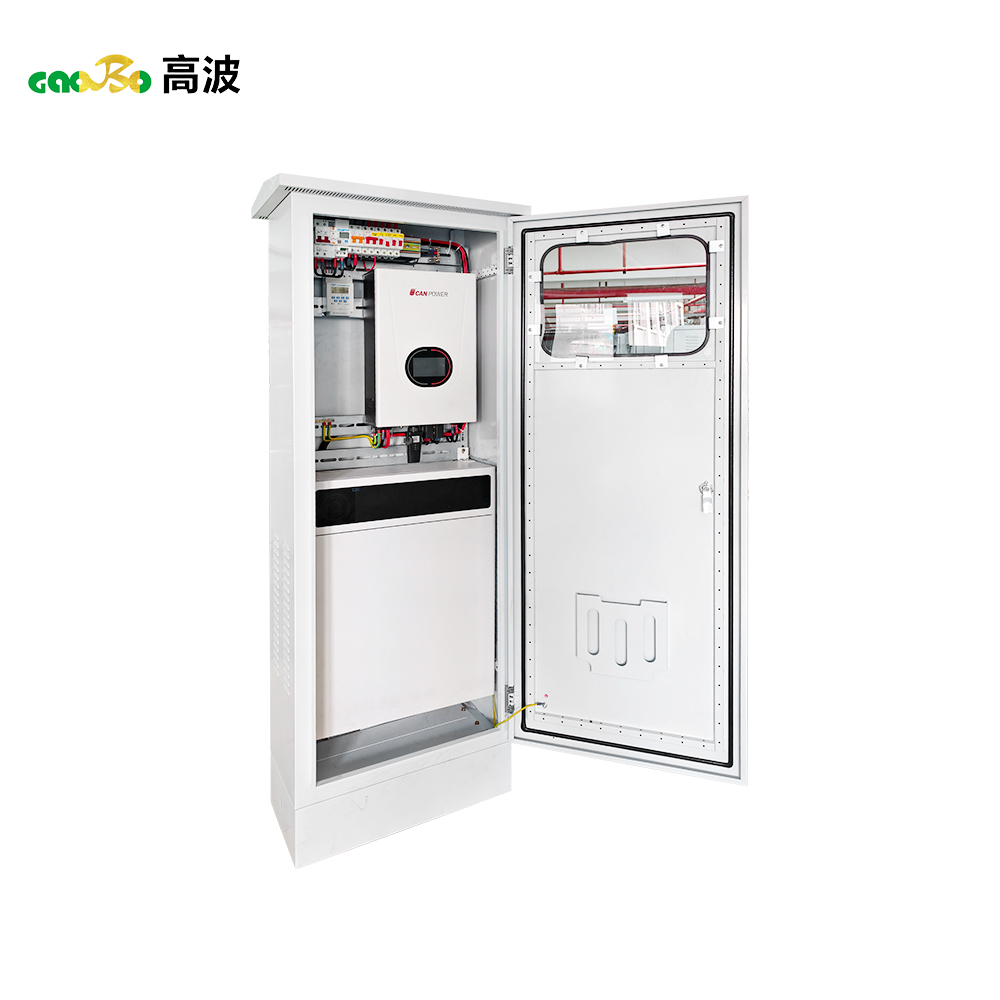

Gaobo Switchgear Manufacturer’s XL Series Household PV Energy Storage Control Cabinet is a dedicated low-voltage power distribution device for residential photovoltaic energy storage systems, fully compliant with the national standard GB7251.3. Optimized for 220V single-phase 50Hz power grids with a 40A rated current and IP30 protection grade, this cabinet integrates PV grid connection, energy storage charging/discharging control, power distribution and safety protection in one, serving as the core "brain" of household PV energy storage systems.

Designed for residential indoor use, its IP30 protection grade effectively blocks solid foreign objects larger than 2.5mm from entering, protecting internal components from dust and debris damage. The cabinet adopts a compact, space-saving structure with a humanized wiring design, making it easy for on-site installation and daily operation. Equipped with professional overvoltage, overcurrent, short-circuit and reverse connection protection modules, it ensures safe and stable operation of PV panels, energy storage batteries and household electrical equipment. As a professional switchgear factory, Gaobo provides flexible one-stop customization services for this product, supporting personalized adjustment of control logic, functional modules and cabinet size to match different household PV storage system configurations and user needs. All products are factory-direct, with strict quality control and complete after-sales support, creating a reliable power distribution solution for household new energy utilization.

Features:

1. GB7251.3 Compliant & High Safety : Fully meets national low-voltage switchgear standards, with built-in overvoltage, overcurrent, short-circuit, reverse connection and overcharge/discharge protection; IP30 dustproof grade ensures safe operation in residential indoor environments.

2. Integrated All-in-One Design : Integrates PV grid connection, energy storage charge/discharge control, household power distribution and fault protection in one cabinet, simplifying system layout and reducing installation space.

3. PV Storage Specialized Matching : Optimized for 220V 40A household single-phase PV energy storage systems, compatible with mainstream residential PV panels and energy storage batteries on the market, with stable power conversion and transmission performance.

4. Compact & User-Friendly : Space-saving compact structure, tailored for residential indoor installation; clear wiring marks, simple operation panel, easy for non-professional users to check and operate, and convenient for later maintenance.

5. Factory Customizable Service : Support personalized customization of control logic, functional module addition (e.g., energy monitoring, remote control), cabinet size and appearance, matching different household PV storage system needs.

6. Stable & Durable : High-quality cold-rolled steel shell with electrostatic anti-corrosion spraying; high-performance internal electrical components with low power consumption and long service life, adapting to long-term continuous operation of household energy storage systems.

Product Uses:

• Realize intelligent control of household PV energy storage systems, including PV power generation grid connection, energy storage battery charging/discharging management and rational distribution of self-use/on-grid power.

• Undertake low-voltage power distribution for household PV storage systems, delivering stable power to household electrical equipment and ensuring safe power supply for daily life.

• Provide multi-dimensional safety protection for PV panels, energy storage batteries and the entire system, automatically cutting off faults to avoid equipment damage and electrical safety hazards.

• Monitor the operating status of the PV energy storage system in real time (e.g., power generation, charging/discharging, voltage/current), with clear fault prompts for quick troubleshooting.

• Realize the optimal utilization of household new energy, maximizing self-use of PV power generation, reducing grid power consumption and saving residential electricity costs.
