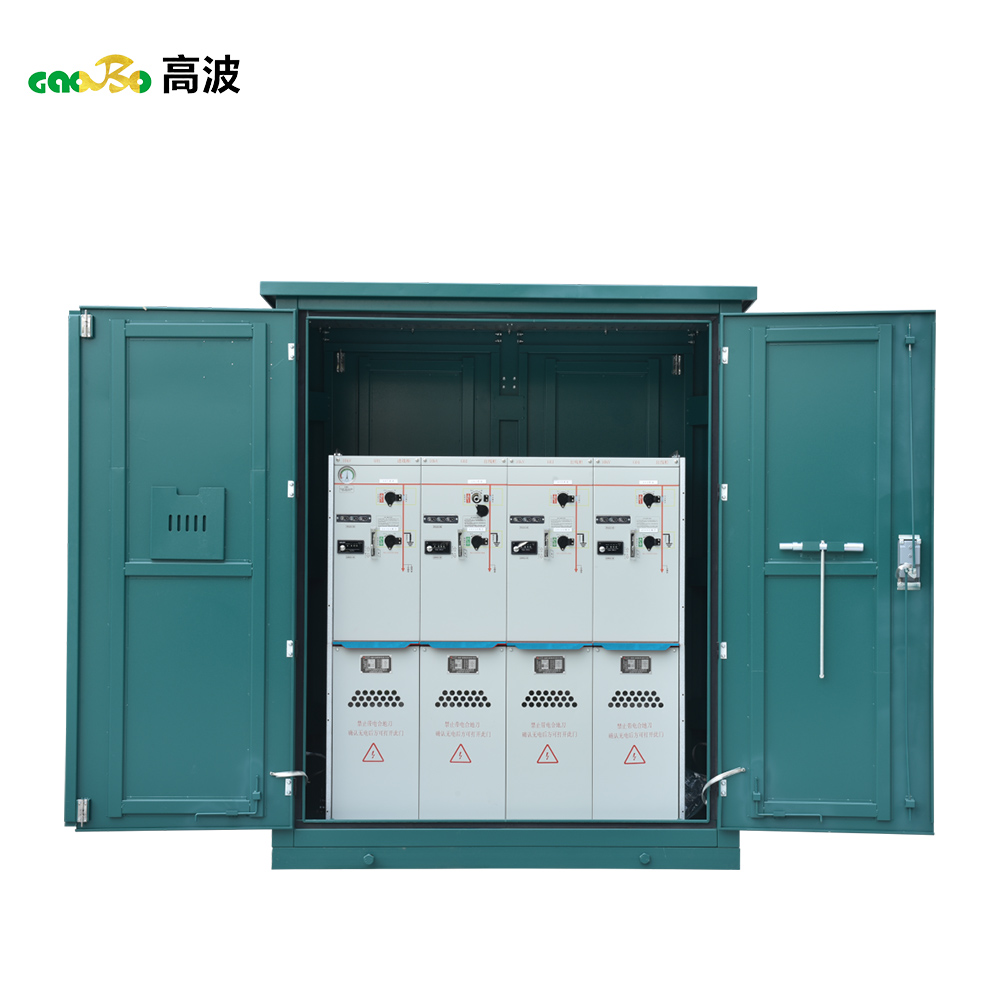

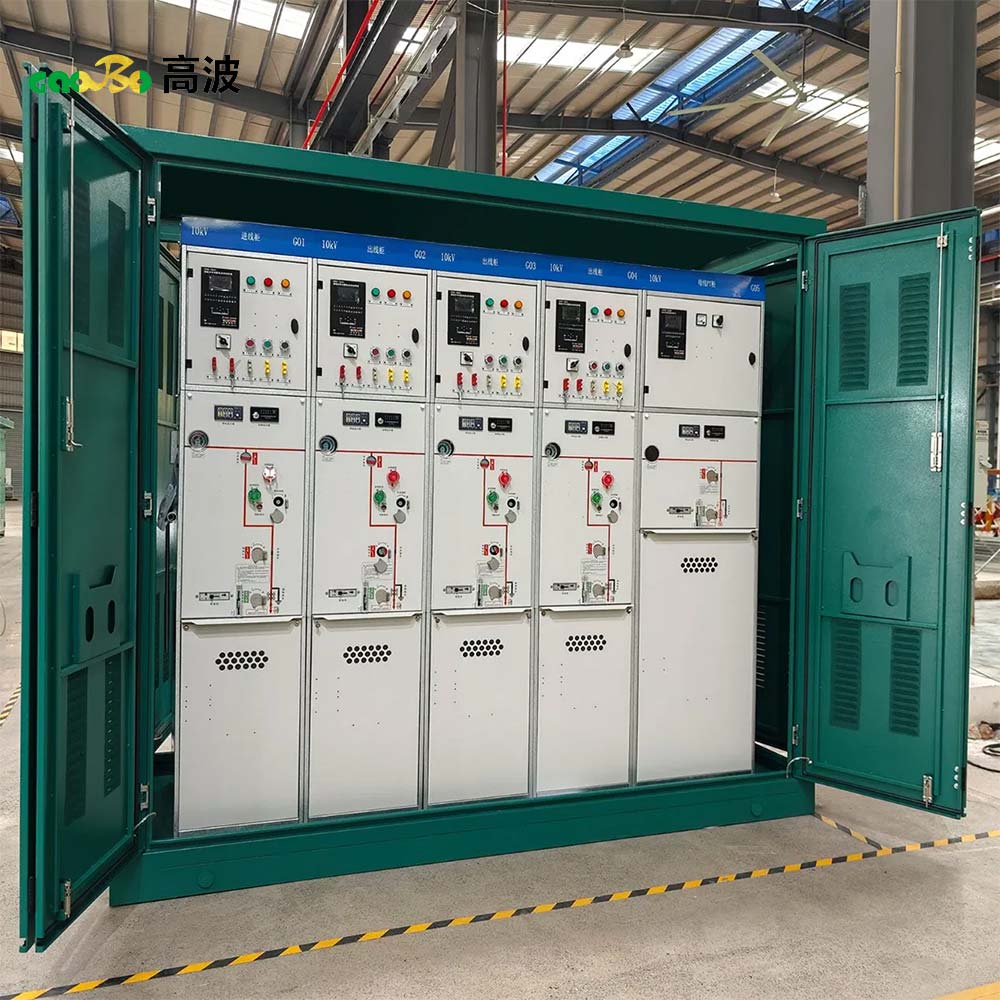

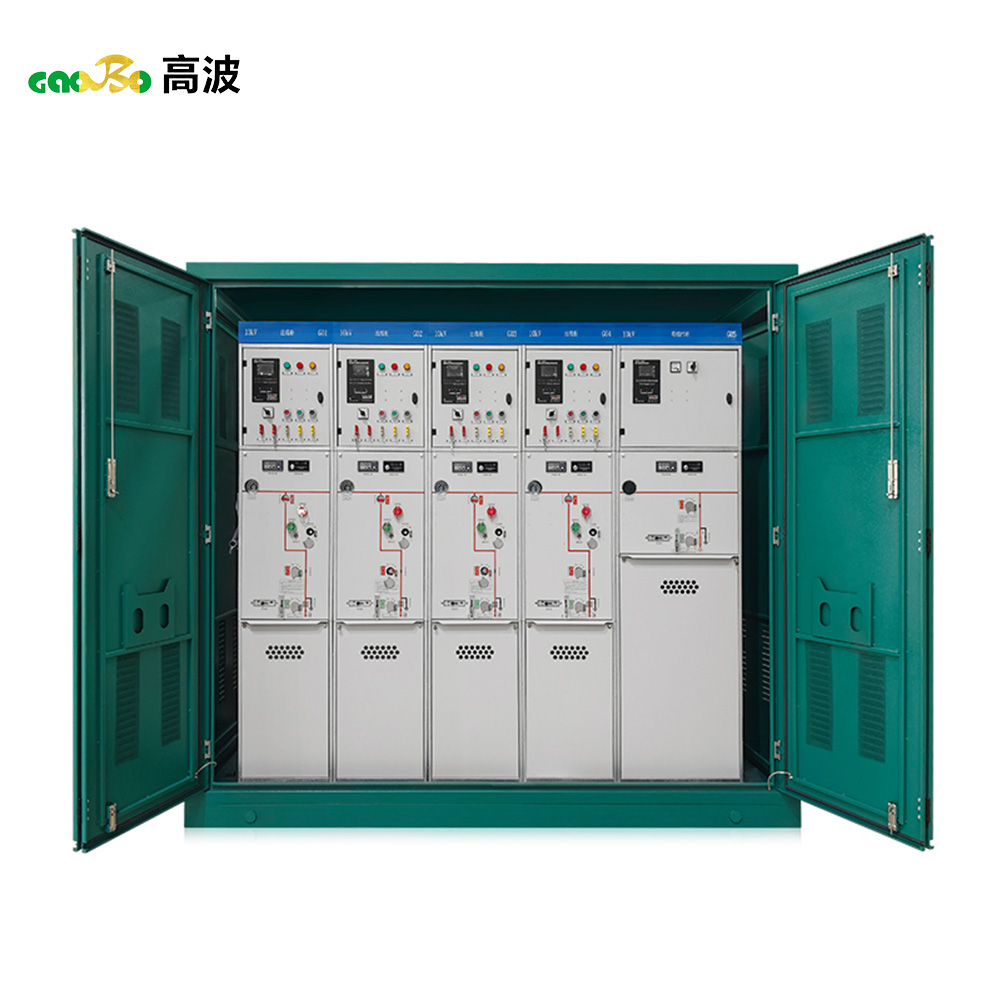

Gaobo Intelligent High Voltage Product XGW-12 Outdoor Power Distribution Cabinet
Production Description:
The XGW-12 outdoor switchgear is a new generation of automated power distribution equipment developed based on the actual development needs of power system distribution network automation. It has all the functions of system monitoring, system control, and system communication, which can fully meet the needs of distribution network automation. It is an ideal modern outdoor switchgear.
Application:
The XGW-12 type outdoor intelligent switchgear is widely used in industrial and civil cable ring networks and power supply terminal projects. It is used in urban high-rise buildings, urban and rural buildings, residential communities, high-tech development zones, small and medium-sized factories, mines and oil fields, and temporary construction power supply sites for receiving and distributing electrical energy in power distribution systems.
Product Features:

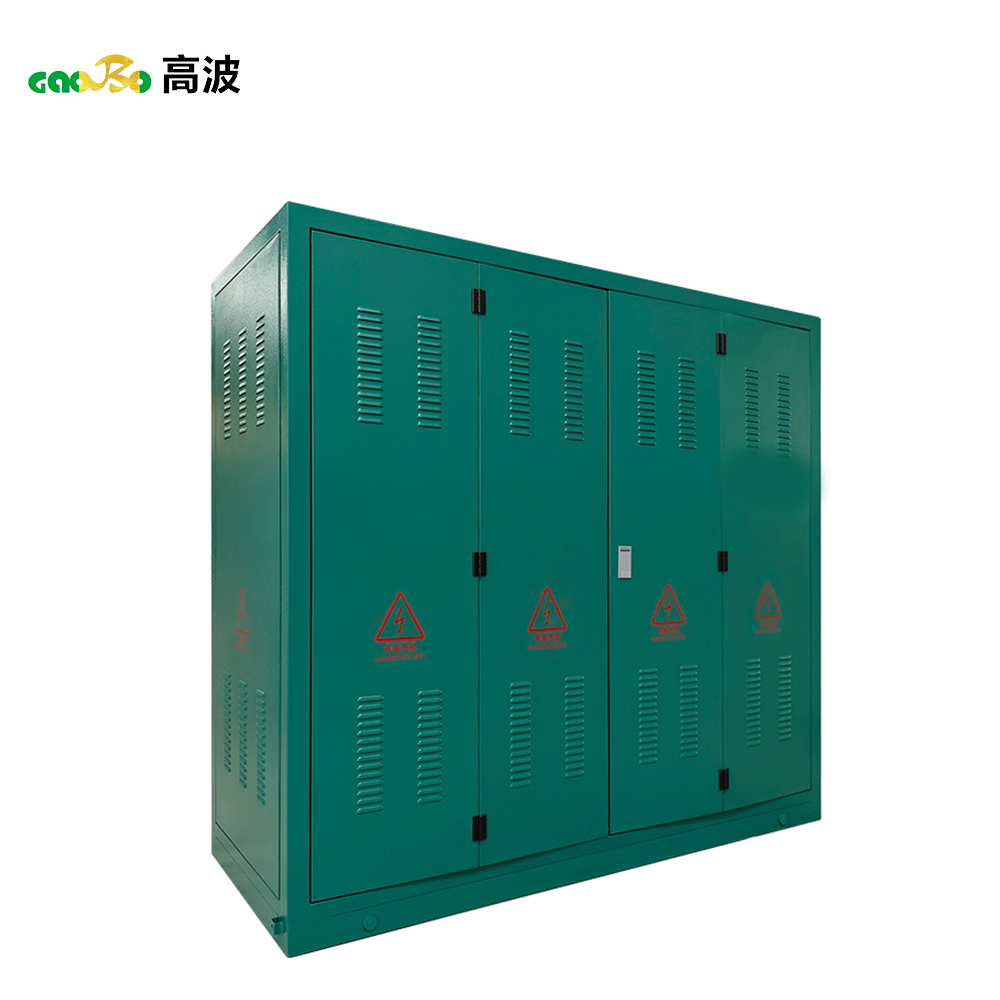

1. The enclosure is made entirely of aluminum-zinc coated steel sheet or stainless steel sheet with a powder-coated finish and a thickness of not less than 1.5mm, providing strong corrosion resistance. Except for the main cabinet, all other enclosure parts are sheet metal components, which are lightweight and aesthetically pleasing.
2. The enclosure has no fasteners on its surface for easy removal, providing good anti-theft protection. It also boasts an IP33 protection rating, offering excellent defensive capabilities.
3. The top cover features a double-layered air-insulated structure with ventilation openings: the air inlet is located on the enclosure panel and includes a removable dust filter.
4. The air outlet is located at the top of the enclosure and concealed under the eaves, creating upward air convection for excellent insulation and ventilation.
5. The top cover has a 3-degree drainage angle. The enclosure features a sealed floor with a cable inlet to prevent moisture from the cable trench from entering.
6. Doors and lifting lugs are sealed with weatherstripping. Side doors can be opened as needed. The door lock has a rainproof design. A limit hook ensures easy door securing when opened.
Technical Parameters：
| Parameter | Details |
| Rated voltage | 12KV |
| Rated Current | 630A |
| Rated Frequency | 50HZ |
| Rated Active Load Breaking Current | 630A |
| Rated Closed-loop Breaking Current | 630A |
| Rated Cable charging Breaking Current | 10A |
| Rated Short-circuit Making Current (Peak Value) | 50KA |
| Rated Short-circuit Withstand Current Duration (Main Circuit) | 4S |
| Rated Short-circuit Withstand Current Duration (Grounding Loop) | 2S |
|
Rated Short-time Withstand Current |
20A |
| Rated Peak Withstand Current | 50KA |
| Rated Short-time Power Frequency Withstand Voltage | 42KV |
| Rated Lightning Impulse Withstand Voltage | 75KV |
| Loop Resistance |
≤300 |
