Smart Distribution Transformer for Enhanced Industrial Energy Efficiency
Production Description:

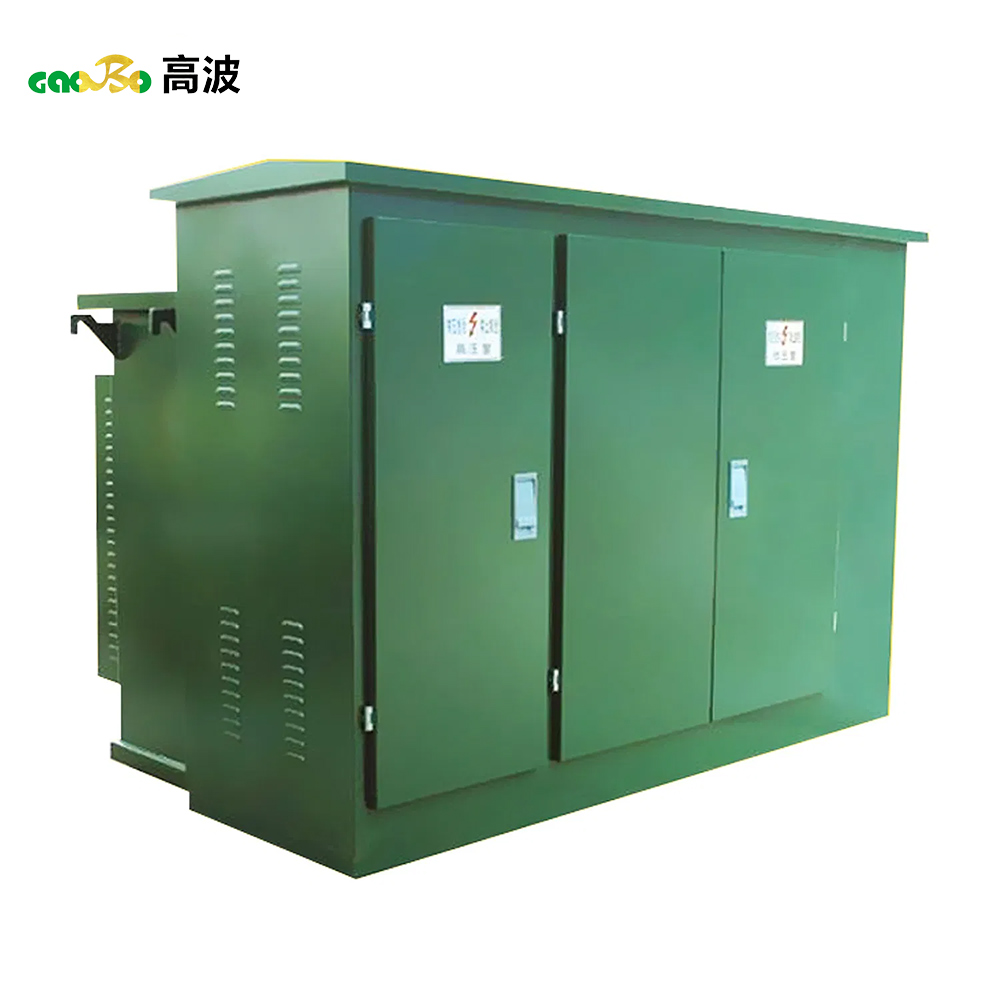

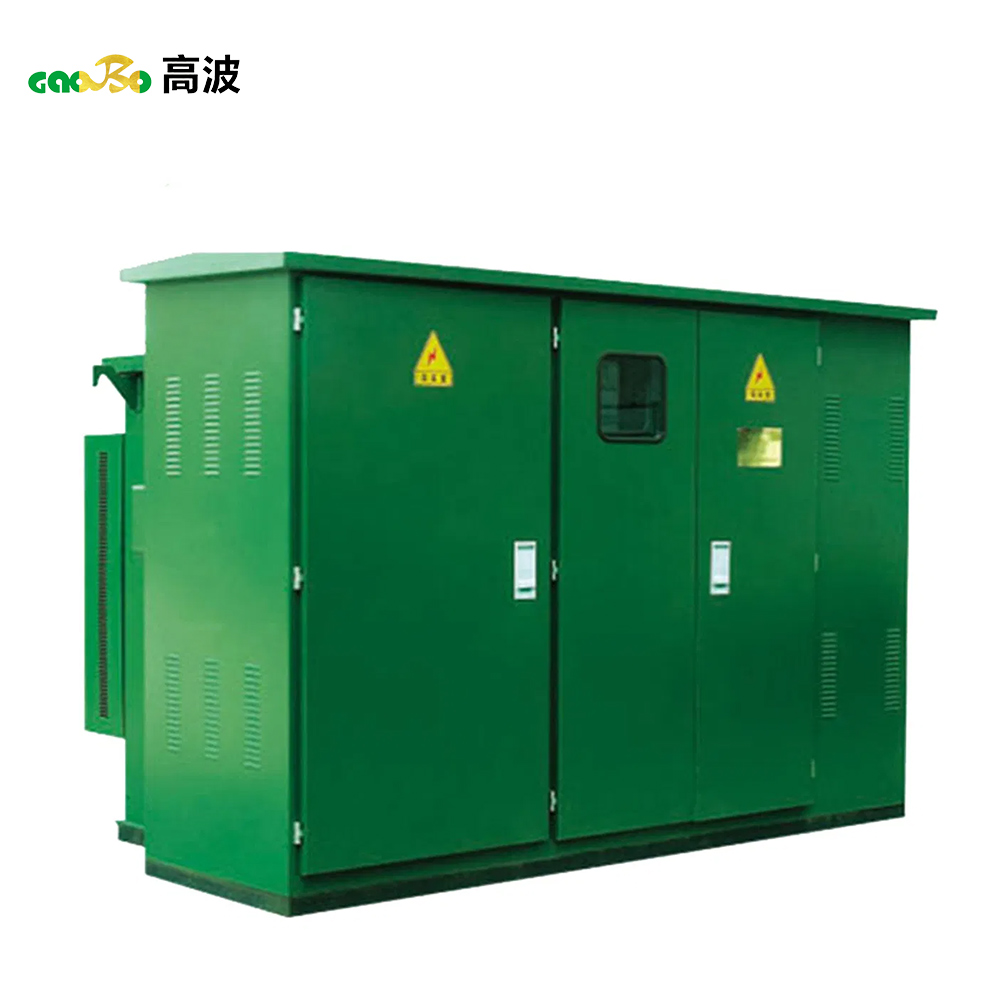

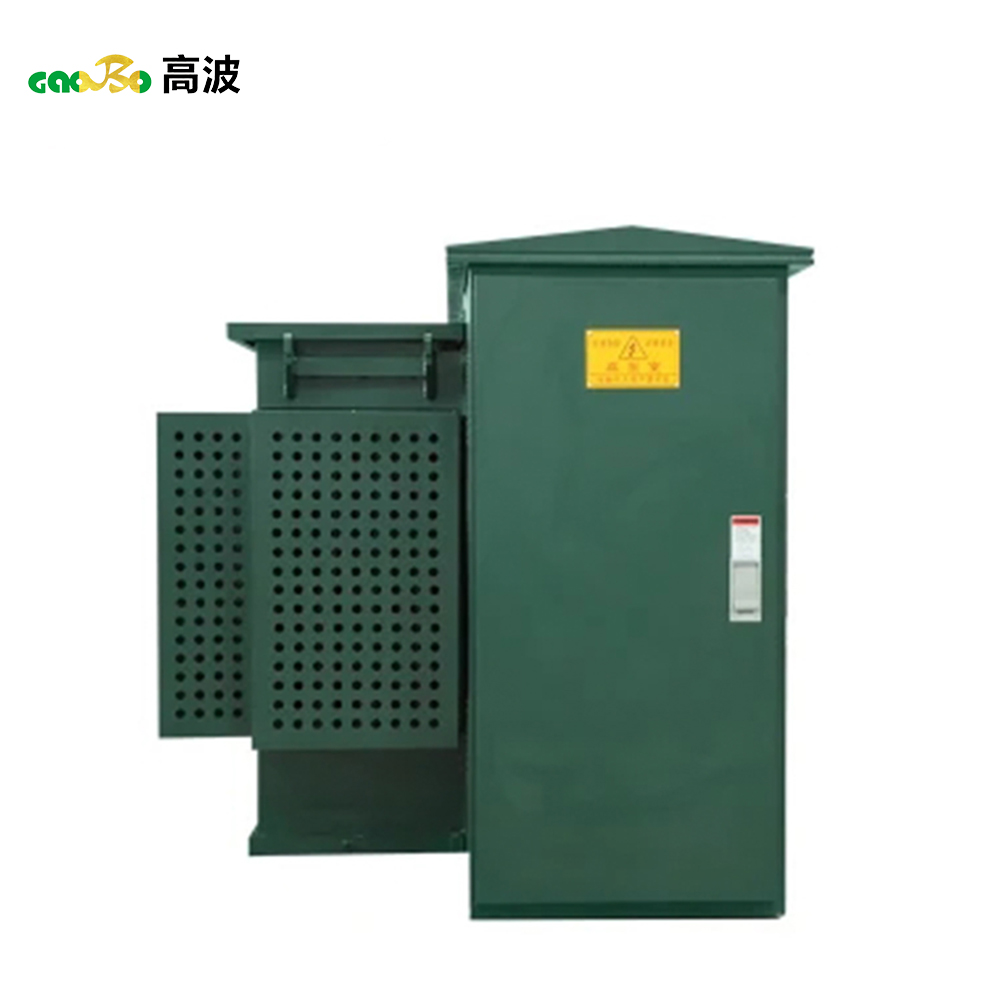

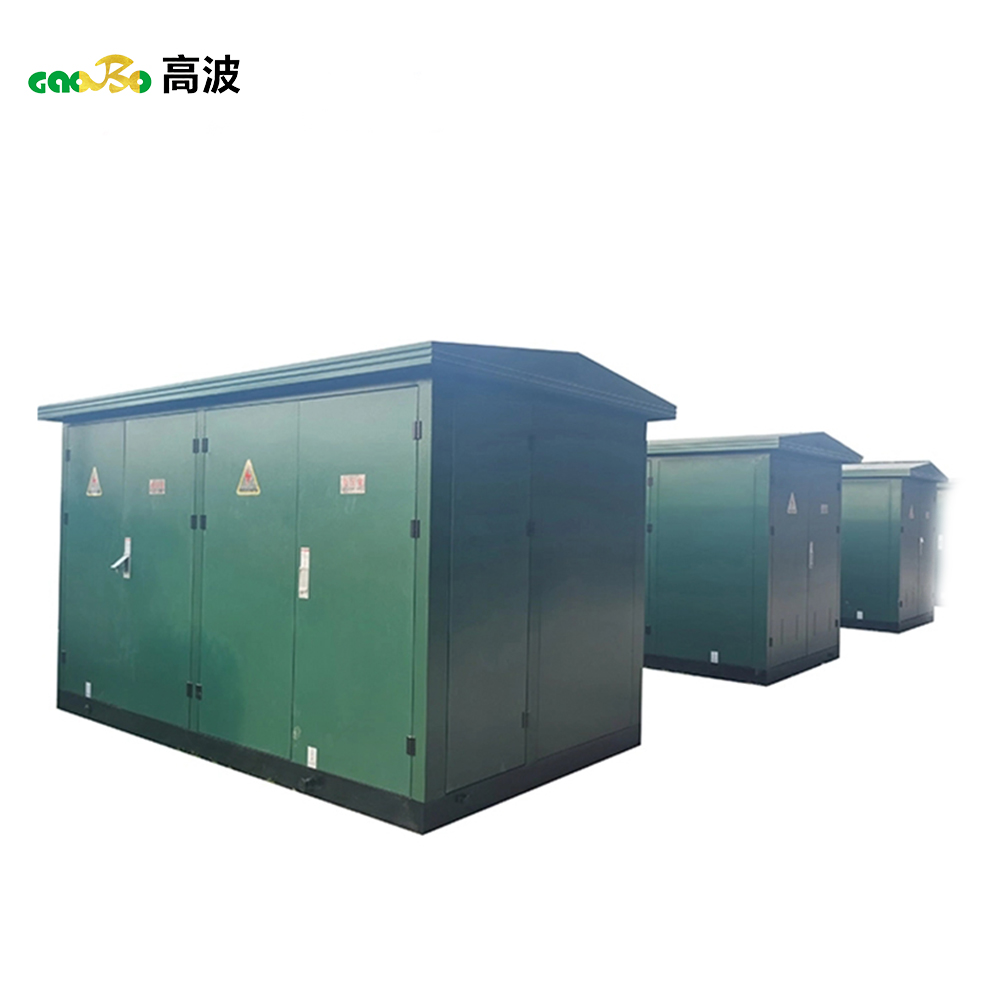

The ZGS combined transformer is a new type of power equipment that organically combines functional units such as transformers, high-voltage switch cabinets and low-voltage power distribution cabinets to achieve efficient power transformation and distribution. It has the characteristics of compact structure, stable operation and high degree of intelligence.
Product Features:
Adopts advanced insulation technology with high safety.
Intelligent monitoring system for real-time operation status monitoring.
Optimized heat dissipation design to ensure stable operation of the equipment.
Split box structure avoids transformer oil pollution.
Function modules can be flexibly configured according to user requirements.
Simple installation and commissioning, and low maintenance cost.
Technical Parameters：
| Technical Parameters | |
| Rated Voltage on High-Voltage Side | 6kV, 10kV |
| Short-Circuit Withstand Voltage on High-Voltage Side | 20kV, 28kV |
| Rated Voltage on Low-Voltage Side | 0.4kV |
| Transformer Capacity | 100 - 1600kVA |
| Transformer Voltage Regulation Range | ±2×2.5%, ±5% |
| Rated Current on High-Voltage Side | 50 - 315A |
| Rated Current on Low-Voltage Side | 200 - 2500A |
| No-Load Current of Transformer | 0.5% - 2% |
| Short-Circuit Impedance of Transformer | 4.5% - 8% |
| Protection Grade | Shell IP40 - IP43, Doors of high and low voltage compartments open IP20 |
Application：
It is suitable for power distribution and control in industrial and mining enterprises, airports, stations, ports, highways and other places.
