Product Introduction

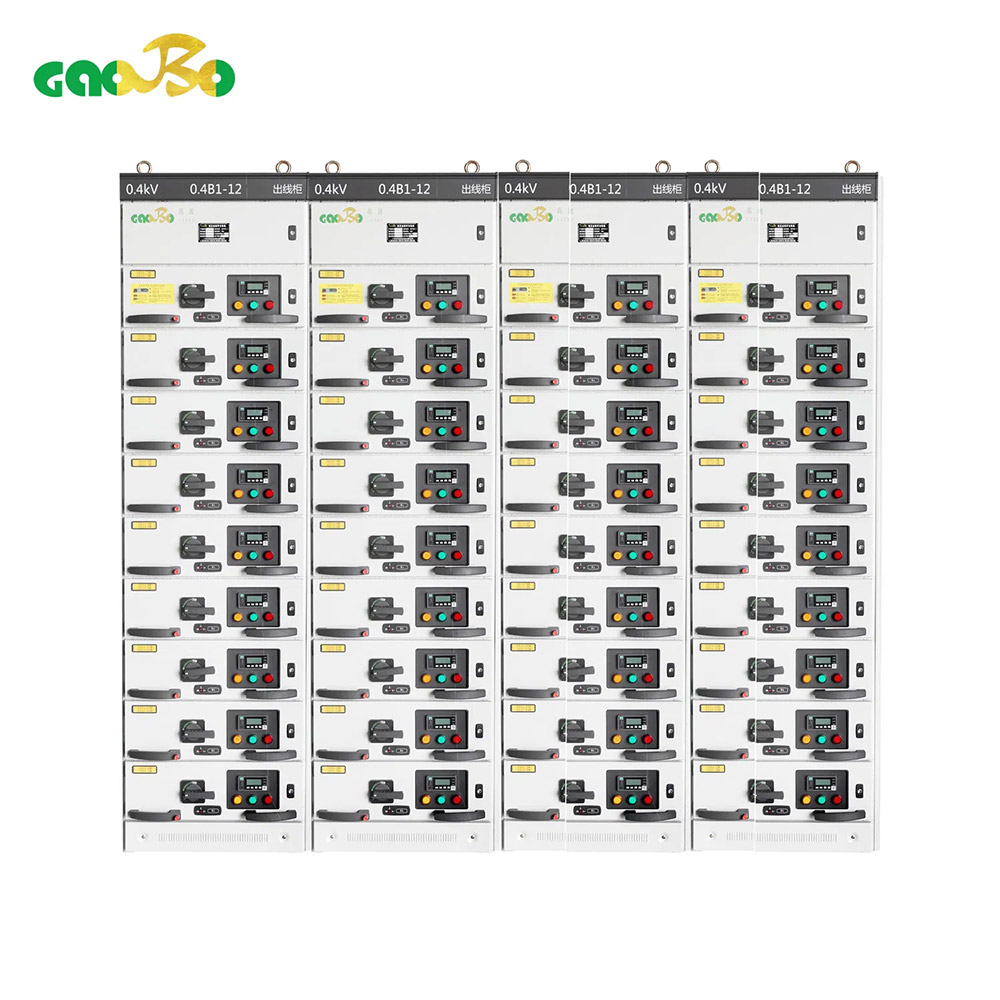

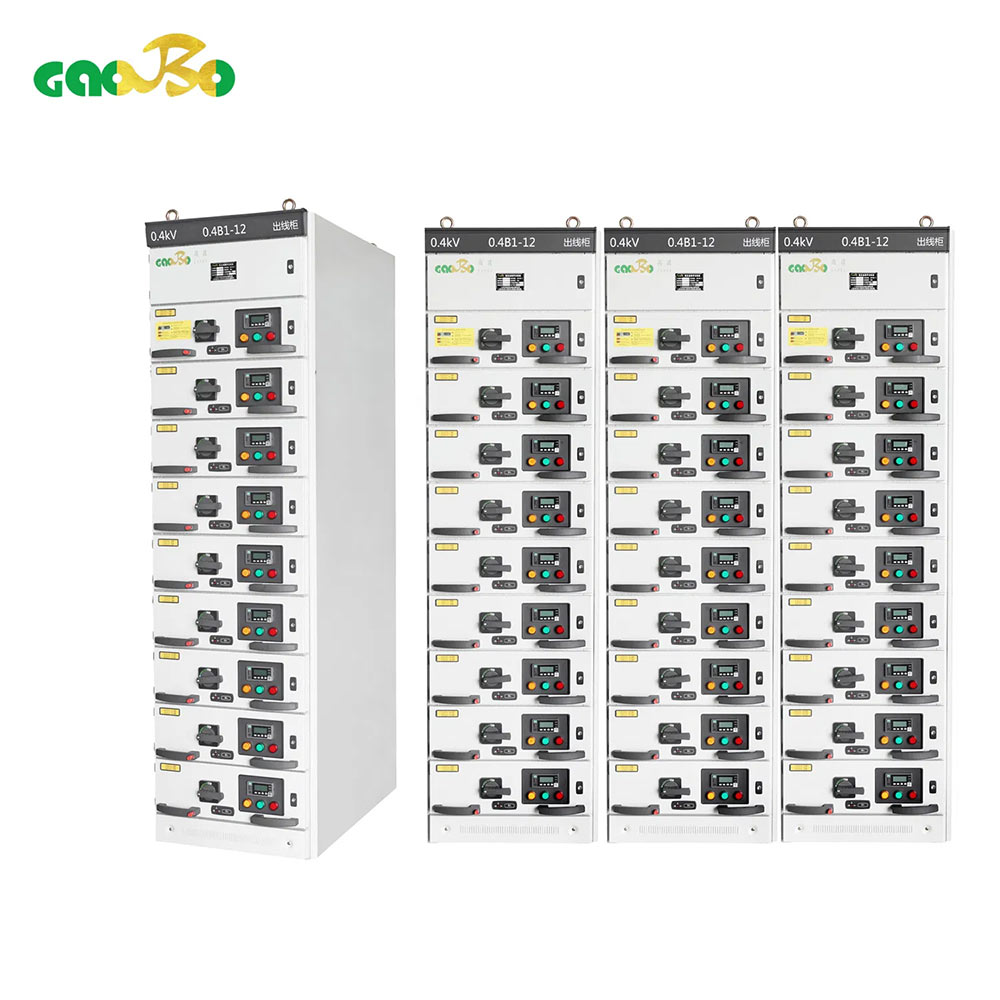

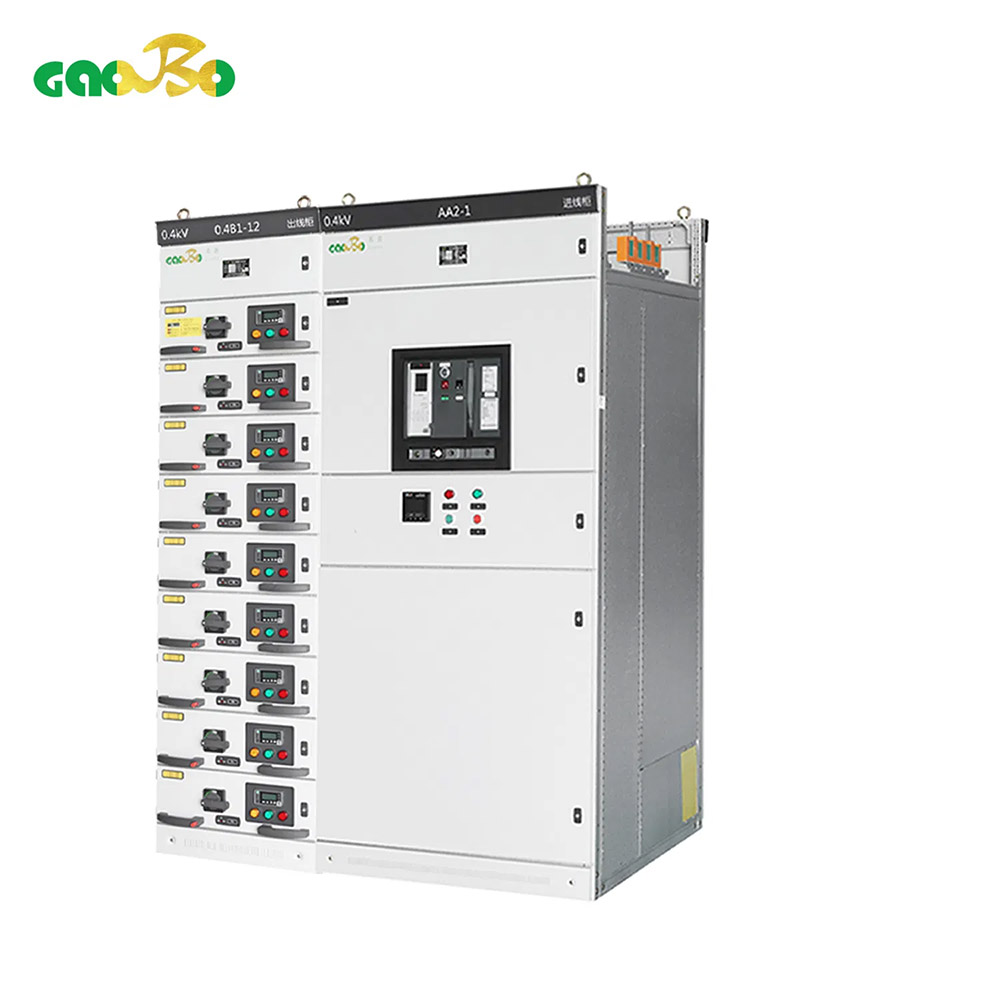

GAOBO GCK Low Voltage Withdrawable Switchgear is a modular drawer-type electrical distribution cabinet designed for low-voltage power distribution, motor control, circuit protection and centralized electrical management.
The withdrawable structure divides different electrical functions into independent drawer units, allowing individual feeders or motor-control circuits to be operated, inspected, replaced or maintained more conveniently. GAOBO’s GCK model is designed for AC 50/60Hz systems and is suitable for rated operating voltages of 400V and below. The system can combine Power Center (PC) and Motor Control Center (MCC) functions within a complete low-voltage distribution solution.
Compared with conventional fixed-type distribution cabinets, withdrawable switchgear provides greater modularity and flexibility. Functional units can be arranged according to the project’s electrical diagram, load capacity and control requirements.
The cabinet is suitable for industrial plants, commercial buildings, infrastructure projects, rail transportation, manufacturing facilities, data centers, water treatment plants and other applications requiring reliable low-voltage power distribution.
Main Features
1. Modular Withdrawable Design

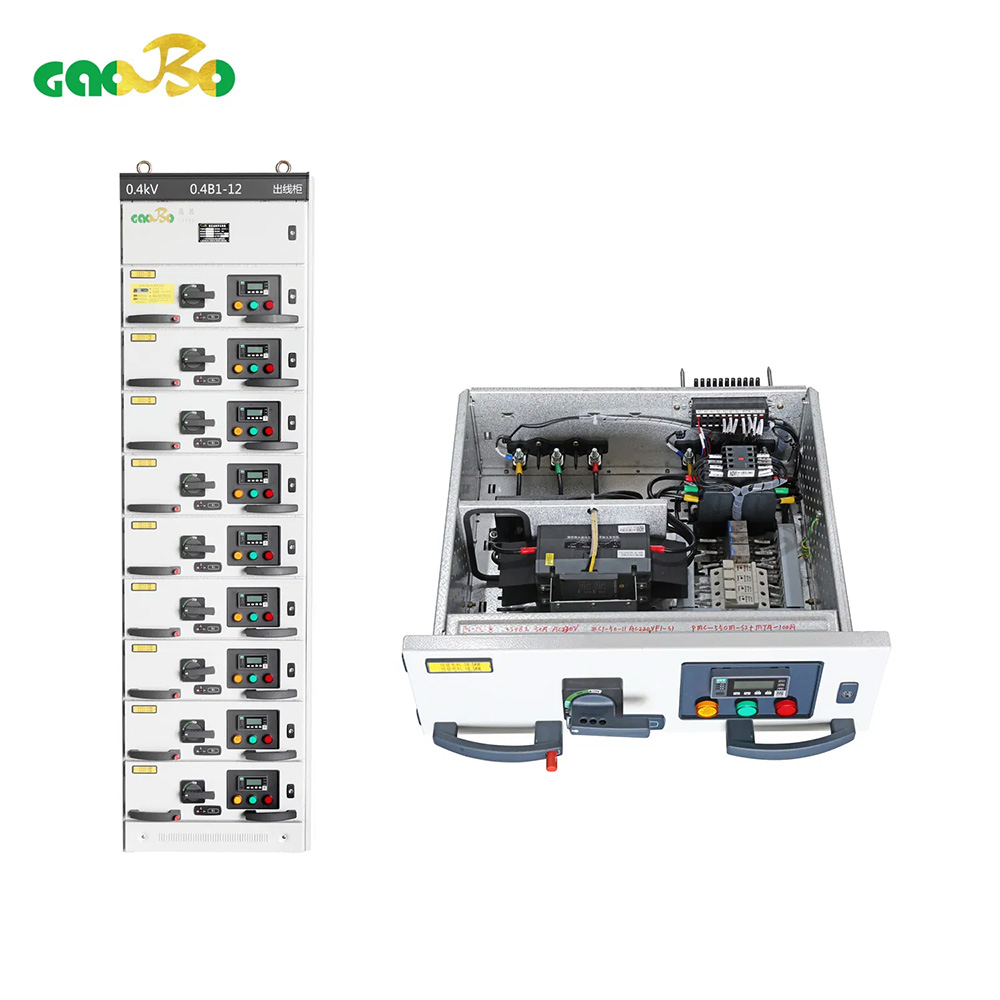

Each functional circuit is installed in an independent drawer unit. Identical functional units can be designed to be interchangeable, helping simplify maintenance and replacement.
2. PC and MCC Integration
The switchgear can combine Power Center (PC) distribution and Motor Control Center (MCC) functions, making it suitable for power incoming, outgoing feeders, motor control and lighting distribution.
3. Independent Functional Units
The modular structure separates electrical functions and helps organize different circuits clearly. This improves maintenance accessibility and makes future system expansion easier.
4. Mechanical Interlocking
Withdrawable systems can incorporate mechanical interlocking between operating positions to improve operational safety and reduce the risk of incorrect operation. GAOBO’s MNS withdrawable system, for example, uses Connect, Test, Disconnect and Withdraw positions with mechanical interlocking.
5. Flexible Component Configuration
Circuit breakers, contactors, relays, meters, protection devices and control components can be selected according to the customer’s electrical drawings, project requirements and preferred component brands.
6. Customized Cabinet Configuration
GAOBO can customize cabinet dimensions, internal layout, protection grade, components and control schemes according to different project requirements.
Main Functions
The GAOBO low-voltage withdrawable switchgear can perform several important functions in a power distribution system:
|
Power receiving and distribution |
Motor centralized control |
|
Circuit switching and isolation |
Overload and short-circuit protection |
|
Electrical equipment control |
Power monitoring |
|
Feeder circuit management |
Lighting power distribution |
|
Industrial automation support |
Intelligent monitoring integration |
Product Advantages
Easy Maintenance
Individual drawer units can be inspected or replaced independently, helping reduce maintenance complexity.
Flexible Expansion
The modular cabinet structure makes it easier to add or modify functional circuits when the electrical system changes.
Space-Efficient Design
Multiple functional units can be integrated into one switchgear lineup, making the system suitable for projects where electrical-room space must be used efficiently.
Improved Operational Safety
Compartmentalized structures and mechanical interlocks help separate functional areas and reduce the possibility of incorrect operation.
Reliable Power Distribution
The system is designed for continuous industrial power distribution and motor-control applications.
Project-Specific Customization
GAOBO can manufacture GCK or MNS withdrawable switchgear according to single-line diagrams, rated current, busbar requirements, cabinet dimensions, IP level and electrical component preferences.
Applications
GAOBO withdrawable low-voltage switchgear can be used for:
- Industrial factories
- Manufacturing production lines
- Commercial buildings
- Shopping centers
- Hospitals
- Airports and railway projects
- Data centers
- Mining projects
- Power plants and substations
- Infrastructure power distribution
Why Choose GAOBO SWITCHGEAR MANUFACTURER?
GAOBO provides both GCK and MNS low-voltage withdrawable switchgear, together with customized low-voltage distribution cabinets and other power distribution solutions. Customers can specify cabinet layouts, electrical parameters, component brands, IP protection levels and control requirements according to their project drawings.
For EPC contractors, electrical distributors and industrial project owners looking for a China withdrawable switchgear manufacturer, GAOBO can provide factory-direct customized solutions for power distribution and motor-control projects.
FAQ
1. What Is a Low Voltage Withdrawable Switchgear Cabinet?
A low voltage withdrawable switchgear cabinet is a modular power distribution system in which circuit breakers, contactors, relays and other functional components are installed in independent withdrawable drawer units. Compared with fixed-type switchgear, the drawer structure makes maintenance, inspection, replacement and system expansion more convenient. It is widely used in industrial power distribution and motor control systems.
2. What Is the Difference Between GCK Withdrawable Switchgear and Fixed-Type Switchgear?
The main difference is the internal structure. In GCK withdrawable switchgear, major functional circuits are installed in removable drawer units, while fixed-type switchgear uses permanently installed components. Withdrawable switchgear generally provides better maintenance accessibility, modularity and circuit management, making it particularly suitable for factories, MCC systems and projects with multiple outgoing feeders.
3. What Applications Are Suitable for GCK Low Voltage Withdrawable Switchgear?
GCK low voltage withdrawable switchgear is commonly used in manufacturing plants, industrial facilities, power plants, substations, commercial buildings, data centers, water treatment plants, mining facilities, transportation projects and other low-voltage power distribution systems. It can be configured for power distribution, motor control, feeder circuits and centralized electrical management.
4. Can GAOBO Customize Drawer-Type Switchgear According to Project Requirements?
Yes. GAOBO SWITCHGEAR MANUFACTURER can customize withdrawable switchgear according to customer single-line diagrams and technical specifications. Customizable items include rated current, busbar capacity, cabinet dimensions, drawer quantity, circuit breaker brands, contactors, protection relays, metering devices, IP protection level, control logic and communication functions.
5. What Information Should I Provide When Requesting a GCK Switchgear Quotation?
For an accurate quotation, it is recommended to provide the single-line diagram, system voltage, frequency, rated current, short-circuit capacity, incoming and outgoing circuit quantities, preferred component brands, cabinet dimensions, IP protection level and project standards. If complete drawings are not available, GAOBO’s engineering team can review the basic electrical parameters and help develop a suitable low voltage withdrawable switchgear solution.
