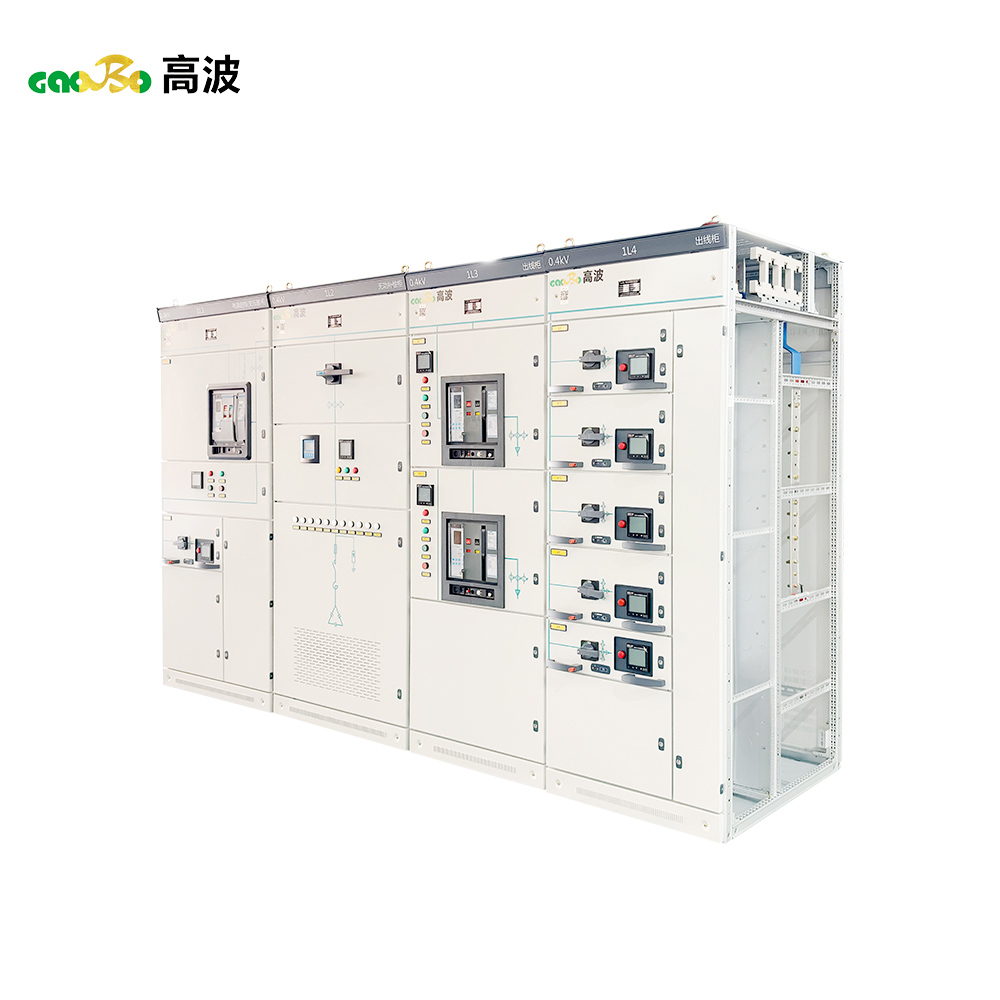

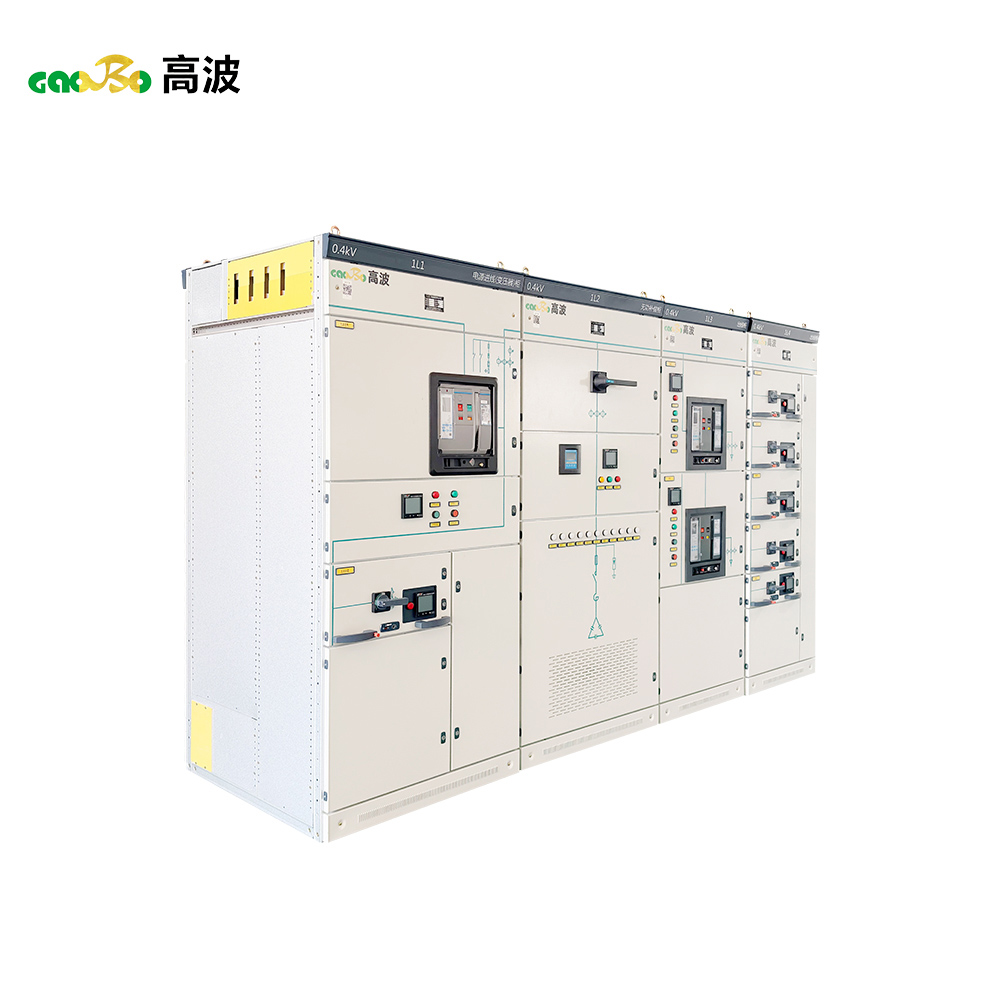

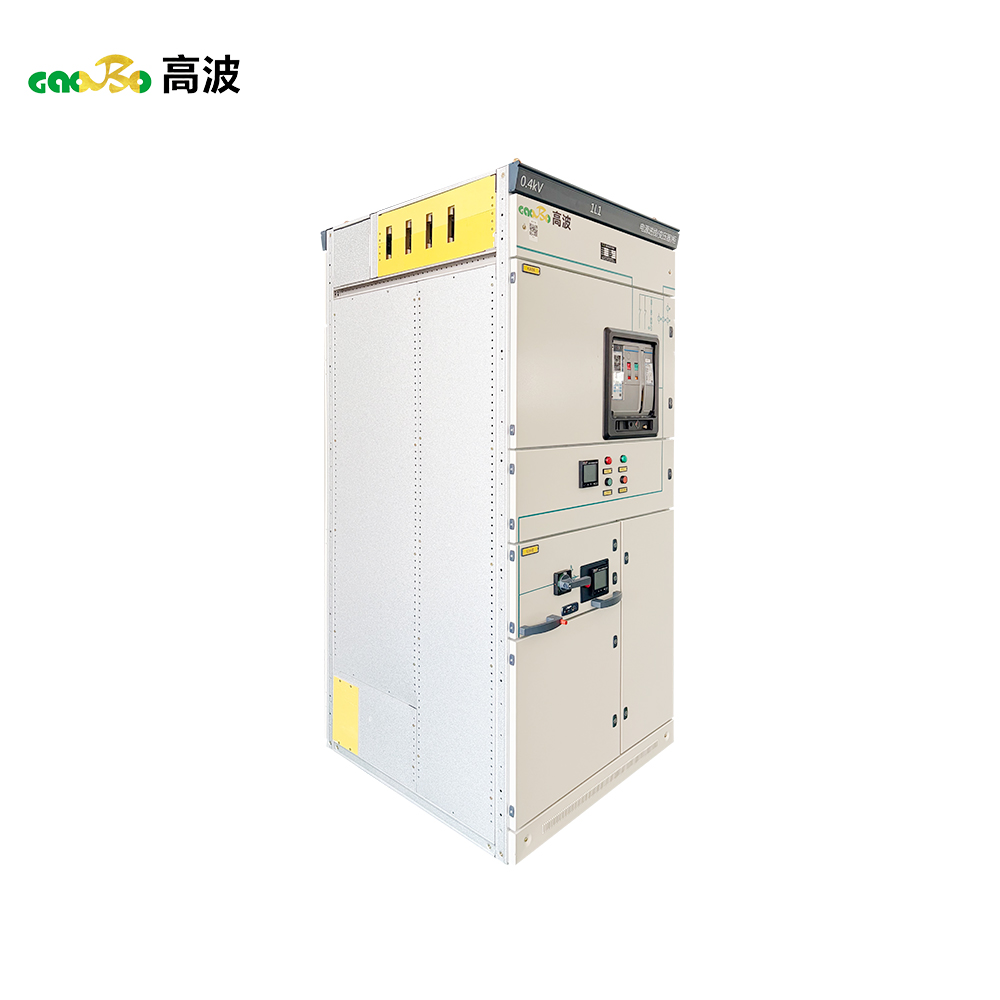

Custom 0.4KV Low Voltage Switchgear Cabinet

Key Features：

• Rated voltage: 0.4KV low voltage system, standard industrial grade
• Integrate incoming, reactive power compensation and outgoing distribution in one solution
• High-strength cabinet body, anti-corrosion and durable for long-term operation
• Complete protection: overload, short circuit, leakage and phase loss protection
• Reactive power compensation design reduces power consumption and improves power factor
• Easy installation, simple maintenance and flexible expansion
• Customizable internal circuit, size and configuration for different project needs

Composition：

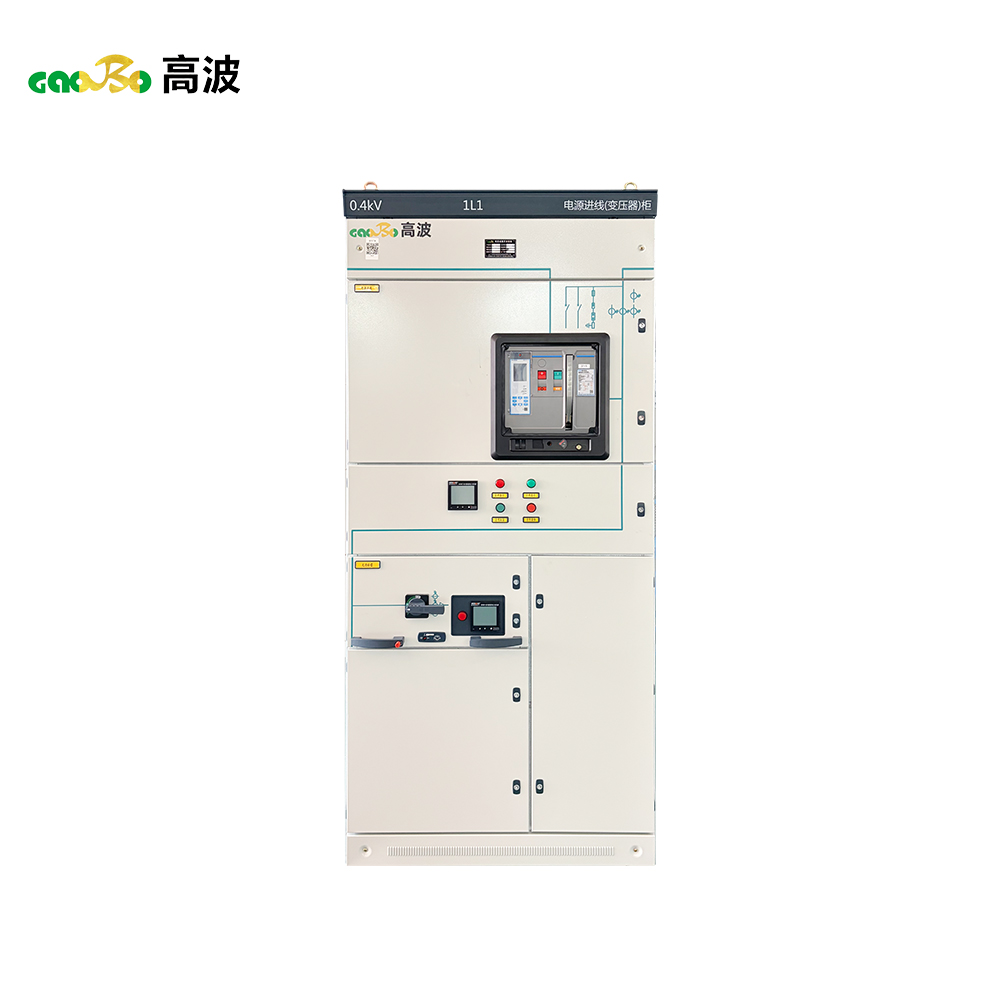

1. Low-voltage Power Supply Incoming Cabinet Mainly responsible for total power input, bearing the overall load of the low-voltage system, with safe isolation and overall protection function.
2. Low-voltage Compensation Cabinet Used for reactive power compensation, improve power factor, reduce energy loss, stabilize grid voltage and save operation cost.
3. Low-voltage Outgoing Cabinet Distribute electric power to each branch circuit, control and protect each independent electrical equipment and workshop load.
