On-site commissioning stands as the most critical final step to guarantee the safe, stable and long-term operation of ring main units (RMUs) in medium voltage (MV) power distribution networks. As a core component of urban and industrial power systems, an improperly commissioned RMU can trigger sudden equipment failures, power outages, and even safety hazards, severely compromising power supply reliability and operational efficiency. With over 17 years of expertise in designing and manufacturing high and low voltage switchgears, GAOBO SWITCHGEAR MANUFACTURER has summarized 5 standardized, key steps for RMU on-site commissioning. These steps streamline the process, eliminate hidden risks, and ensure consistent, reliable MV operation for your projects.

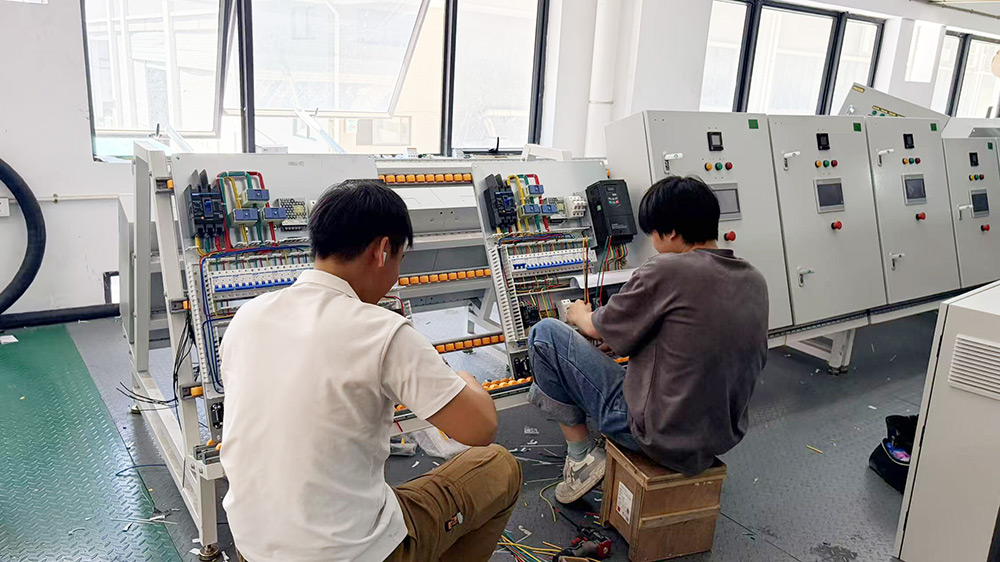

Step 1: Appearance & Installation Verification
The foundation of reliable commissioning lies in thorough visual and installation checks. Inspect the RMU cabinet for any physical damage, deformation, or corrosion during transportation and installation. Verify all external and internal wiring is securely tightened, free of loose connections, exposed conductors, or incorrect routing. Confirm the unit’s installation position meets design requirements—including proper spacing for heat dissipation, compliance with safety distance standards, and alignment with floor anchoring specifications. Also, check auxiliary components such as door seals, grounding terminals, and nameplates for completeness and correctness.
Step 2: Insulation Performance Testing
Insulation integrity is non-negotiable for MV equipment safety. Use a professional insulation resistance tester to conduct comprehensive tests on all internal circuits, busbars, switches, and cable terminations of the RMU. Test voltages must match the equipment’s rated voltage (typically 12kV for standard RMUs) to accurately assess insulation performance. Record insulation resistance values, ensuring they meet or exceed industry and manufacturer standards. Any abnormal readings indicate potential insulation defects, which must be resolved before proceeding to avoid short-circuit faults during operation.
Step 3: Mechanical Operation Validation
Smooth mechanical operation ensures the RMU can perform switching actions reliably under normal and fault conditions. Conduct both manual and electrical operation tests on all switches, disconnectors, and circuit breakers within the unit. Manually operate each component to check for flexible movement, no jamming, and accurate position indication (open/closed/grounded). Follow with electrical operation tests using the control system to verify consistent, responsive switching. Confirm mechanical interlocks function correctly—preventing unsafe operations such as closing a switch while the grounding device is engaged—to enhance operational safety.
Step 4: Protection Function Simulation & Testing
Protection systems are the "safety guard" of RMUs, responsible for isolating faults instantly. Simulate common MV system faults, including short circuits, overvoltage, overload, and earth faults, to validate the performance of protection relays and circuit breakers. Monitor whether relays detect faults accurately and trigger circuit breakers to trip within the specified time. Verify protection parameter settings align with design requirements and grid standards. This step ensures the RMU can respond rapidly to faults, minimizing equipment damage and power outage scope.
Step 5: Communication Function Calibration
Modern RMUs rely on stable communication for intelligent power distribution management. Test the communication link between the RMU and the central control system (CCS), SCADA, or remote monitoring platform. Verify data transmission accuracy, including real-time operating parameters (voltage, current, temperature), switch status, and fault alarm signals. Check communication protocols (e.g., Modbus, IEC 61850) for compatibility and stable connection without data loss or delay. A reliable communication system enables remote monitoring, fault diagnosis, and operation optimization, supporting intelligent MV power distribution.
Professional Commissioning Support from GAOBO SWITCHGEAR MANUFACTURER
As a leading manufacturer certified with ISO9001, ISO14001 and ISO45001, GAOBO SWITCHGEAR MANUFACTURER delivers end-to-end RMU solutions, including professional on-site commissioning services. Our team of seasoned engineers, with decades of experience in MV switchgear, executes commissioning strictly per industry standards, ensuring RMUs meet all operational requirements. We also offer customized commissioning training for your on-site personnel, empowering your team to master basic operation and maintenance skills.
For 12kV ring main unit on-site commissioning services or technical inquiries, contact GAOBO SWITCHGEAR MANUFACTURER via gaoboele.com. Our expert team provides reliable, efficient support to safeguard your medium voltage power distribution systems.
