Choosing the right high voltage switchgear cabinet is an important decision for industrial power projects. The switchgear plays a critical role in power distribution, circuit protection, system control and operational safety. If the equipment is not properly selected, it may lead to unstable power supply, difficult maintenance, increased operating costs or even electrical faults.

For industrial plants, substations, mining projects, manufacturing facilities and large infrastructure projects, buyers should evaluate technical parameters, application conditions and long-term maintenance requirements before selecting high voltage switchgear.

1. Confirm the System Voltage and Rated Current

The first step is to confirm the rated voltage, rated current and system frequency. Common medium- and high-voltage industrial distribution systems may use 6kV, 10kV, 12kV, 24kV, 35kV or other voltage levels depending on the project.

The rated current should also match the actual load and future expansion requirements. Selecting a cabinet with insufficient capacity may affect system reliability, while excessive capacity can increase unnecessary project cost.

2. Check Short-Circuit Withstand Capability

Short-circuit current is one of the most important parameters when selecting high voltage switchgear. Buyers should confirm the rated short-time withstand current and peak withstand current according to the electrical system design.

For example, KYN28 metal-clad switchgear is commonly used in industrial and utility projects because it offers reliable circuit protection, mechanical interlocking and withdrawable circuit breaker configurations.

GAOBO SWITCHGEAR MANUFACTURER can provide customized KYN28 and other high voltage switchgear solutions according to customer single-line diagrams and technical specifications.

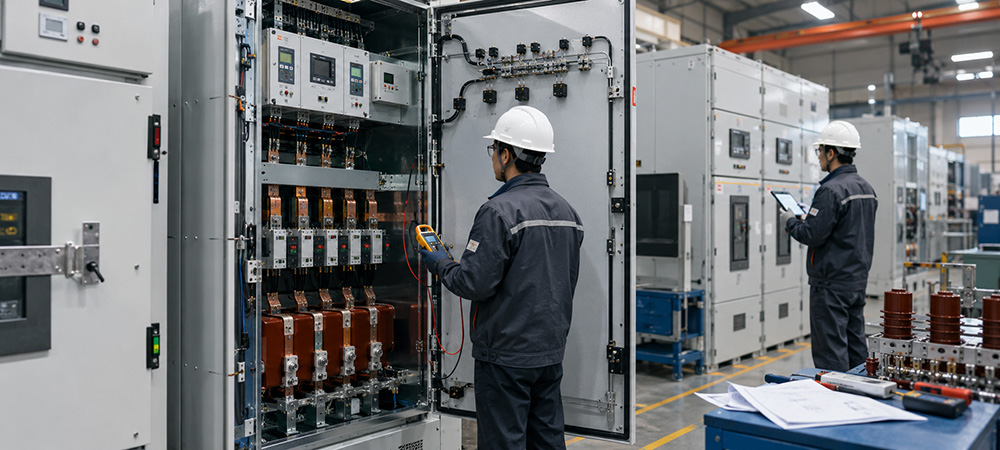

3. Select the Appropriate Circuit Breaker

The circuit breaker is a core component of high voltage switchgear. Vacuum circuit breakers are widely used in medium-voltage systems because of their reliability, long service life and low maintenance requirements.

When choosing switchgear, buyers should confirm the circuit breaker brand, breaking capacity, operating mechanism and protection functions. GAOBO can integrate different circuit breaker and relay brands according to project requirements and customer preferences.

4. Consider the Installation Environment

Industrial environments can vary significantly. Temperature, humidity, dust, altitude, corrosion and ventilation conditions may affect switchgear performance.

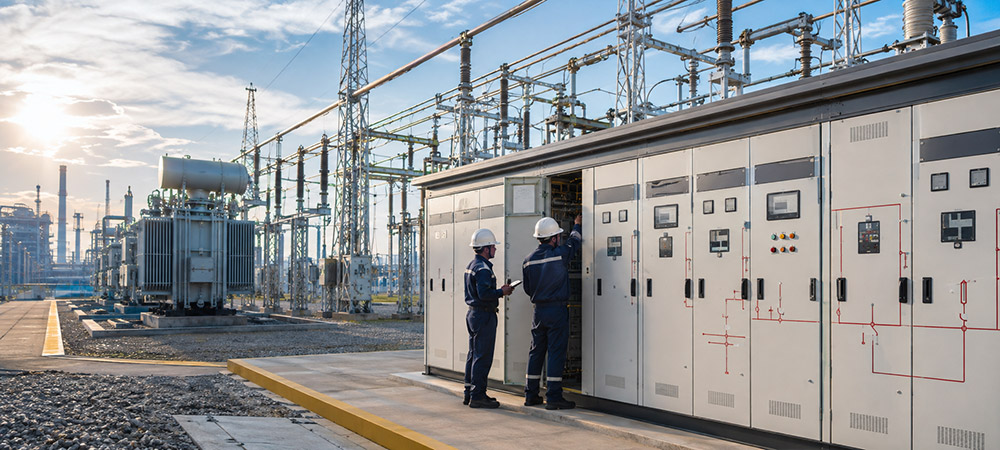

For mining, chemical, coastal or dusty industrial applications, higher enclosure protection levels or special anti-corrosion designs may be required. Indoor and outdoor installations may also require different cabinet structures.

Providing detailed environmental information to the switchgear manufacturer helps ensure that the final configuration is suitable for actual operating conditions.

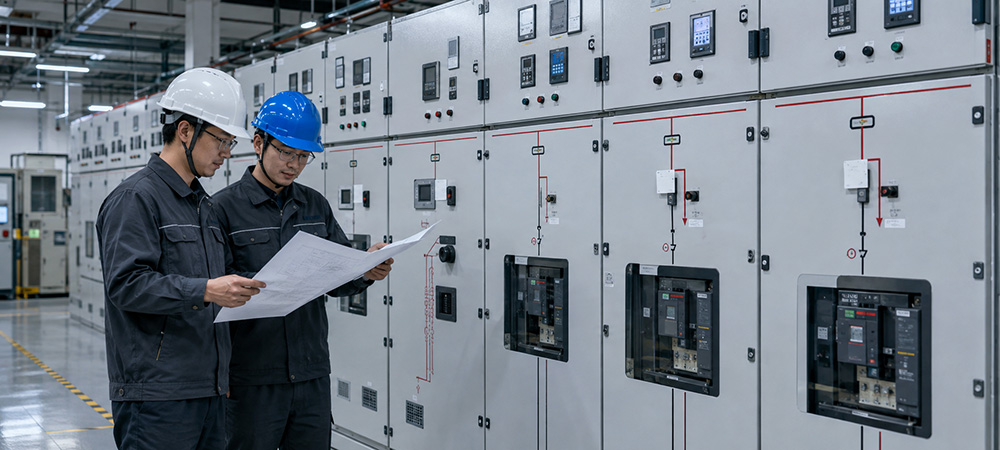

5. Evaluate Safety and Interlocking Functions

High voltage switchgear should provide reliable mechanical and electrical interlocking to reduce the risk of incorrect operation.

Important safety features may include:

• Circuit breaker interlocking
• Earthing switch interlocking
• Door interlocking
• Disconnecting position indication
• Fault protection
• Arc protection options
• Clear operating status indication

These functions help protect operators and improve system safety during operation and maintenance.

6. Check Protection, Metering and Monitoring Requirements

Modern industrial power projects increasingly require intelligent monitoring and automation.

Protection relays, digital meters, temperature monitoring devices and communication modules can be integrated into high voltage switchgear. This allows operators to monitor voltage, current, breaker status and system conditions more efficiently.

For smart factories, data centers and automated industrial projects, communication functions and remote monitoring can significantly improve power management efficiency.

7. Choose a Manufacturer with Custom Engineering Capability

Different industrial projects have different electrical requirements. Therefore, selecting a manufacturer with strong customization and engineering capabilities is important.

GAOBO SWITCHGEAR MANUFACTURER provides high voltage switchgear, medium voltage switchgear, low voltage switchboards, ring main units, box-type substations and PLC control cabinets for international projects.

GAOBO can customize cabinet dimensions, busbar ratings, circuit breaker brands, protection relays, control logic and communication systems according to customer drawings.

Factory-direct cooperation also helps improve technical communication, project coordination and cost control.

Choosing the right high voltage switchgear cabinet requires careful evaluation of voltage level, rated current, short-circuit capacity, circuit breaker configuration, installation environment, safety functions and monitoring requirements.

For industrial power projects, reliable equipment and professional engineering support are equally important.

GAOBO SWITCHGEAR MANUFACTURER provides customized high voltage switchgear solutions for factories, substations, industrial plants, mining projects, infrastructure and other power distribution applications. With factory-direct manufacturing, technical support and flexible customization, GAOBO helps customers build safer and more reliable industrial power systems.

Frequently Asked Questions

1. What Is a High Voltage Switchgear Cabinet?

A high voltage switchgear cabinet is electrical equipment used to receive, control, protect and distribute electrical power in medium- and high-voltage systems. It typically includes circuit breakers, protection relays, busbars, current transformers, voltage transformers, metering devices and interlocking mechanisms. It is widely used in substations, industrial plants, mining projects, infrastructure and utility power systems.

2. How Do I Choose the Correct Voltage and Current Rating for High Voltage Switchgear?

The rated voltage and rated current should be selected according to the project’s electrical system design, actual load and future expansion requirements. Buyers should also confirm system frequency, short-circuit current, busbar capacity and insulation requirements. Providing a single-line diagram and technical specifications allows the switchgear manufacturer to recommend a suitable configuration.

3. Why Is KYN28 Switchgear Commonly Used in Industrial Power Projects?

KYN28 metal-clad withdrawable switchgear is widely used because it offers a modular structure, reliable vacuum circuit breaker operation, clear functional compartments and multiple mechanical interlocking functions. It is suitable for power receiving, feeder distribution, transformer protection and industrial power control applications.

4. Can GAOBO Customize High Voltage Switchgear for Different Projects?

Yes. GAOBO SWITCHGEAR MANUFACTURER can customize high voltage switchgear according to customer drawings and technical requirements. Customizable items include rated voltage, rated current, busbar specifications, circuit breaker brands, protection relays, cabinet dimensions, IP protection level, control logic, metering systems and communication functions.

5. What Information Should I Provide When Requesting a High Voltage Switchgear Quotation?

For an accurate quotation, it is recommended to provide the single-line diagram, rated voltage, frequency, rated current, short-circuit capacity, incoming and outgoing circuit quantities, preferred circuit breaker and relay brands, installation environment and applicable technical standards. If complete drawings are not available, GAOBO’s engineering team can review the basic project parameters and help develop a suitable high voltage switchgear solution.
